TradingView Alert-to-Broker Automation Architect
Its central engineering principle is: An alert is an intent message.
$9.99
TradingView Alert-to-Broker Automation Architect
Example session with this skill installed
PROJECT
Name
Atlas NQ TradingView Automation
Objective
Create a production-grade TradingView-to-broker pipeline for an intraday futures strategy.
Primary Requirement
Prevent duplicate orders and ambiguous execution state.
Strategy
AtlasTrend v3.2
Instrument
NQ futures
TradingView Symbol
NQ1!
Timeframe
5 minutes
Expected Order Frequency
5–15 orders per trading day
Latency Sensitivity
Moderate
A few seconds may be acceptable, but stale signals older than 20 seconds should not be executed.
TRADINGVIEW
Pine Script Type
strategy
Alert Timing
Confirmed bar close
Current Events
ENTRY_INTENT
EXIT_INTENT
STOP_UPDATE_INTENT
Current Alert Frequency
Once per confirmed event
Current Payload
Simple JSON with symbol, side, quantity, and timestamp
Requested Improvement
Versioned payload with event ID, strategy version, environment, action, broker-symbol hint, stop, target, and timestamps.
BROKER
Broker
Tradovate
Environment
Paper first, live later
Account Route
FUTURES_PAPER_A
Desired Live Route
FUTURES_LIVE_A
Order Types Needed
Market Entry
Protective Stop
Limit Profit Target
Cancel
Flatten
Position Model
Net futures position
Broker API Documentation
To be verified from current official documentation before implementation.
MIDDLEWARE
Preferred Runtime
Python or TypeScript
Hosting
Cloud VPS or managed cloud service
Database
PostgreSQL
Queue
Optional, recommend based on architecture
Secrets
Managed secret store
Public Endpoint
HTTPS webhook endpoint
Expected Concurrency
Low, but multiple alert deliveries must be handled safely.
RISK LAYER
AI Trading Risk & Position Sizing Guardian:
Yes
Prop Firm Compliance
Optional later
Risk Layer May
ALLOW
REDUCE SIZE
BLOCK TRADE
STOP TRADING
If authorized size is smaller than TradingView requested size:
Submit no more than authorized quantity.
LIVE SAFETY
Default
Paper only
Live must require
Explicit configuration and operator arming
Kill Switches Required
Global
Account
Strategy
Kill switch should
Block new entries and scale-ins.
It should still allow
Exits
Cancellations
Protective stop handling
Emergency flatten
Manual operator action only.
IDEMPOTENCY
Requirement
The same TradingView logical event must never create two broker orders.
Need
Stable event ID
Durable deduplication
Payload hash
Client order identity if broker supports it
Reconciliation
BROKER TIMEOUT POLICY
Critical Scenario
Middleware submits entry.
Broker receives it.
Response is lost.
Do NOT blindly submit again.
Required behavior
Mark order state as SUBMISSION_UNKNOWN.
Query broker.
Identify whether the order exists.
Reconcile before any potential resubmission.

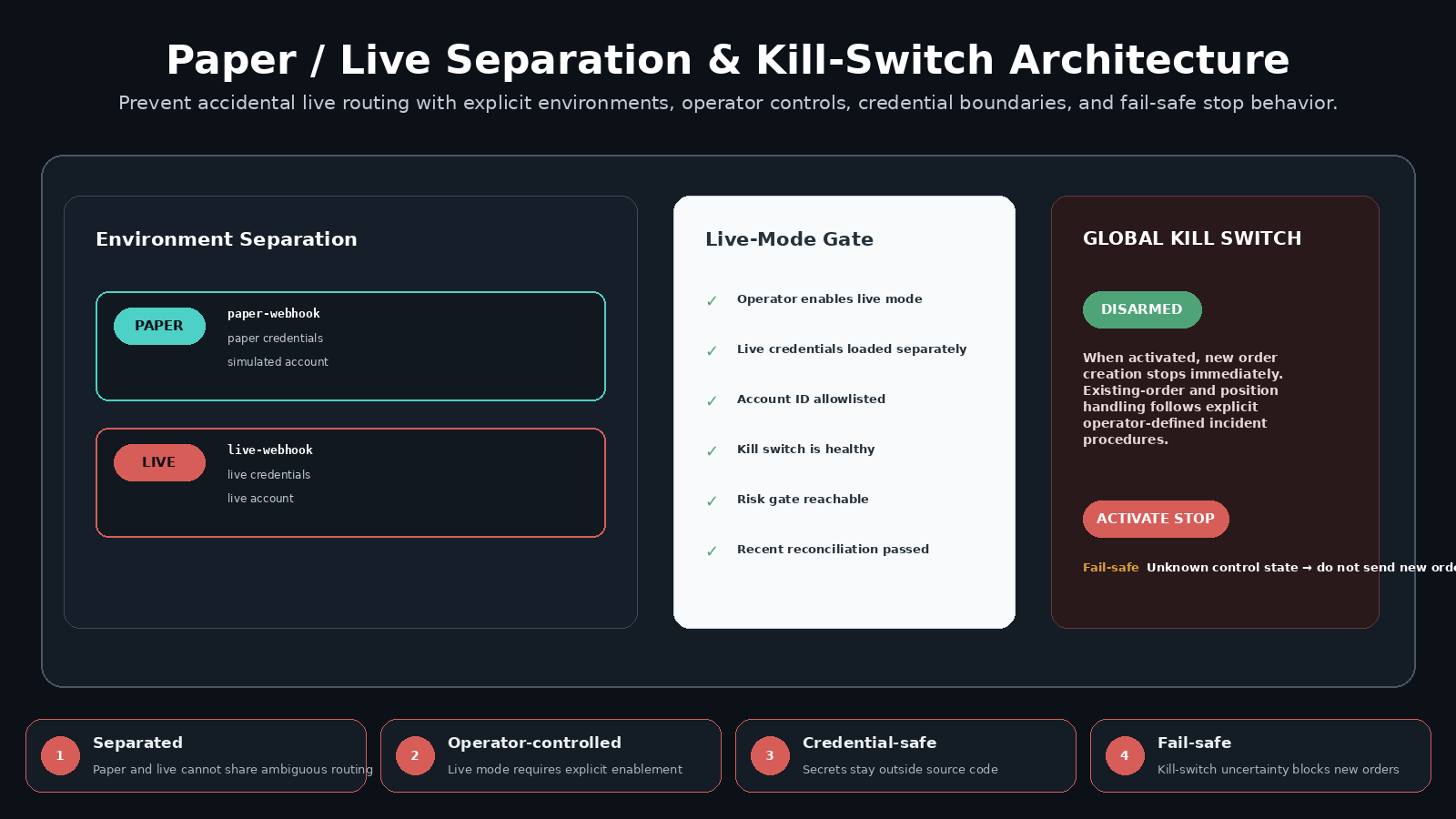

PAPER / LIVE
Need strong technical isolation.
A paper payload must never reach a live account.
Live should never be the default.
PARTIAL FILLS
System must recognize partial exposure immediately.
Example
Requested
3 contracts
Filled
1
System should protect
1 filled contract
Remaining
2 working
SYMBOL MAPPING
TradingView
NQ1!
Broker
Actual active futures contract
Need
Explicit rollover-aware mapping.
If mapping is missing or expired
Reject new entry.
LOGGING
Need immutable or append-oriented audit history for:
TradingView Alert
Command
Risk Decision
Broker Submission
Acknowledgement
Fill
Position Change
Reconciliation
Operator Action
MONITORING
Need alerts for
Broker Disconnect
Unknown Submission
Position Drift
Duplicate Burst
Kill Switch
Authentication Failure
Queue Backlog
High Latency
Protective Order Failure
TEST REQUIREMENTS
Duplicate alert test
Timeout after broker acceptance
Partial fill
Cancel race
Middleware restart
Broker reconnect
Position drift
Stale signal
Paper/live isolation
Kill switch
Protective stop failure
REQUEST
Design the complete architecture.
Include
TradingView alert schema
Webhook validation
Authentication boundary
Replay protection
Idempotency
Duplicate-order prevention
Symbol mapping
Risk authorization
Tradovate adapter boundary
Order state machine
Safe retry logic
Timeout recovery
Partial-fill behavior
Bracket architecture
Paper/live modes
Kill switches
Reconciliation
Logging
Monitoring
Failure-mode table
Security checklist
Testing plan
Production deployment checklist
Do not invent current Tradovate API endpoints or capabilities.
Mark any broker-specific functionality that requires current official verification.
- Read your context and instructions
- Compiled the tradingview alert-to-broker automation
=== TRADINGVIEW ALERT-TO-BROKER AUTOMATION ARCHITECTURE ===
Project
Atlas NQ TradingView Automation
Strategy
AtlasTrend v3.2
TradingView
NQ1! / 5-Minute
Broker Target
Tradovate
Initial Environment
PAPER
Future Environment
LIVE after controlled activation
Primary Engineering Objective
Create an effectively-once order-routing workflow in which duplicate alerts, middleware retries, restarts, network ambiguity, and broker timeouts cannot casually create duplicate exposure.

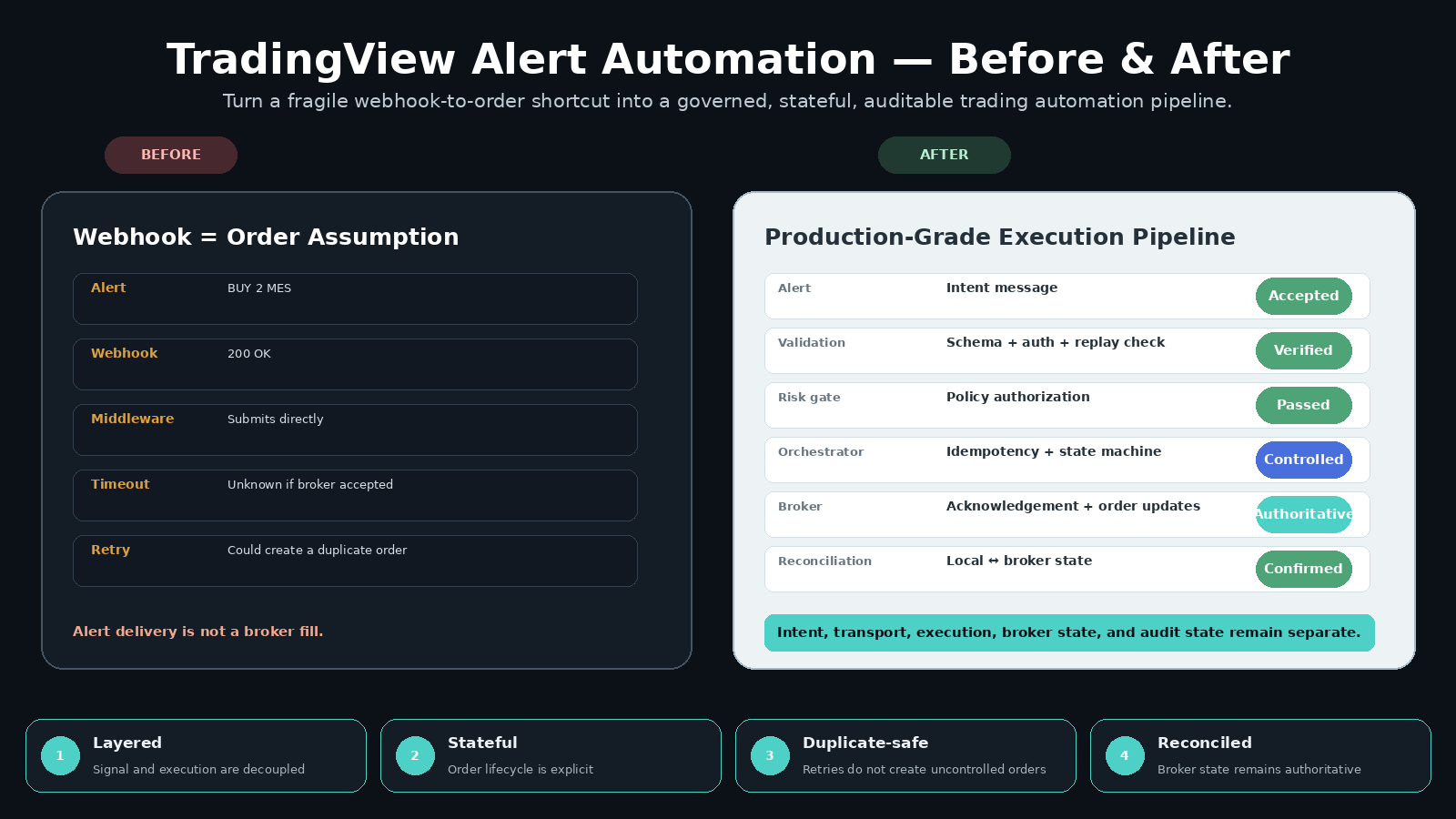

=== 1. RECOMMENDED SYSTEM FLOW ===
TradingView
|
| Versioned Alert
v
HTTPS Ingress
|
| Validate / Persist
v
Webhook Inbox
|
| Deduplicate
v
Normalized Command
|
| Risk Authorization
v
Order Orchestrator
|
| Symbol + Account + Capability Validation
v
Tradovate Adapter
|
| Order Submission
v
Tradovate
|
| Acknowledgement / Order Updates / Fills
v

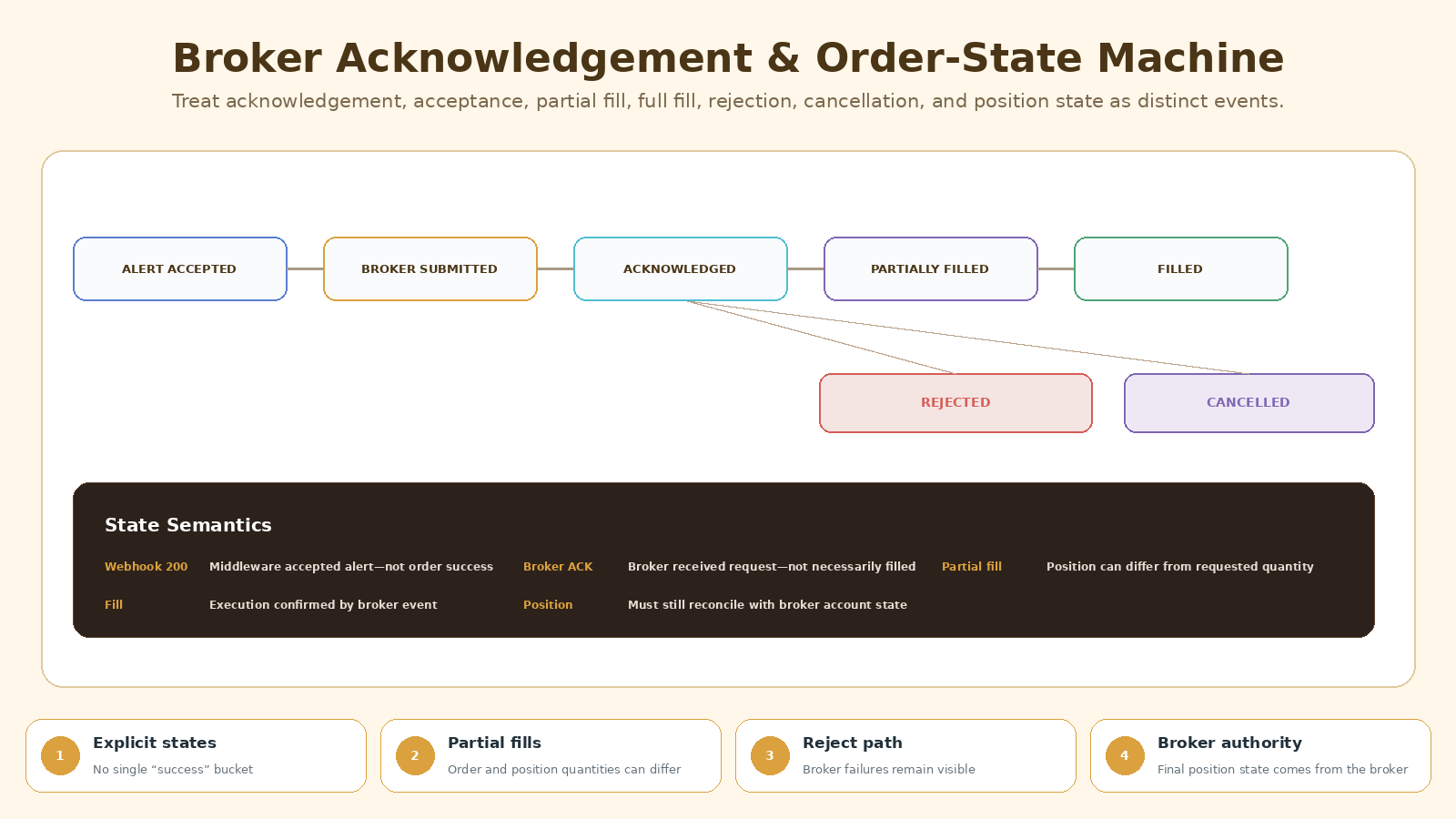

Order State Machine
|
v
Position + Order Reconciliation
|
v
Audit Log / Monitoring / Operator Dashboard
=== 2. ARCHITECTURAL PRINCIPLES ===
Principle 1:
TradingView sends trading intent.
It does not determine authoritative broker state.
Principle 2:
HTTP acceptance from middleware means only:
Command Received
It does not mean
Order Filled
Principle 3:
Broker acknowledgement is separate from execution.
Principle 4:
Timeout after submission creates
UNKNOWN EXECUTION STATE
not:
REJECTED ORDER
Principle 5:
Broker-reported positions remain the authoritative live position source under this architecture.
Principle 6:
Paper and live routing must be technically isolated.
Principle 7:
No new live risk is allowed when reconciliation is unhealthy.

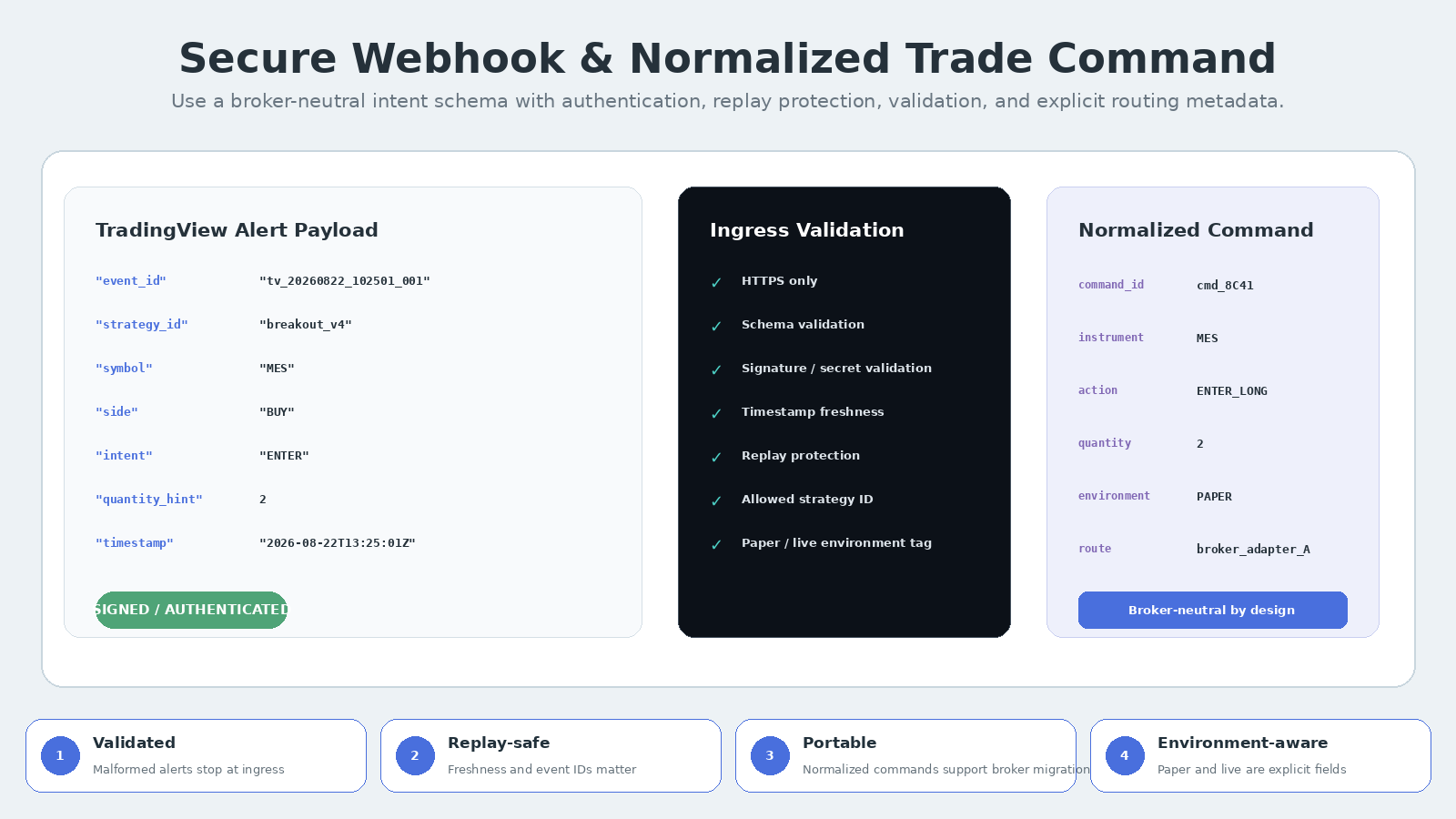

=== 3. WEBHOOK SCHEMA ===
Recommended normalized TradingView payload:
{
"schema_version": "1.0",
"event_id": "atlastrend-3.2-nq-20260822-103500-entry-long-001",
"source": "tradingview",
"strategy": "AtlasTrend",
"strategy_version": "3.2",
"environment": "paper",
"route_key": "FUTURES_PAPER_A",
"event": "ENTRY_INTENT",
"action": "OPEN",
"symbol": "NQ1!",
"broker_symbol_hint": "ACTIVE_NQ",
"timeframe": "5m",
"side": "BUY",
"order_type": "MARKET",
"quantity": 3,
"signal_price": 24965.25,
"stop_price": 24940.25,
"target_price": 25015.25,
"bar_time": "2026-08-22T10:35:00-04:00",
"sent_at": "2026-08-22T10:35:01-04:00",
"metadata": {
"setup": "trend_pullback"
}
}
=== 4. REQUIRED FIELDS ===
Always Required
schema_version
event_id
source
strategy
strategy_version
environment
route_key
event
action
symbol
timeframe
side
sent_at
Conditionally Required
quantity
order_type
stop_price
target_price
limit_price
bar_time
=== 5. ACTION SEMANTICS ===
Do not interpret BUY automatically as OPEN LONG.
Use
Action
OPEN
Side
BUY
For closing
Action
CLOSE
Side
SELL
For reducing
Action
REDUCE
For reversal
Action
REVERSE
For protective changes
MODIFY_STOP
MODIFY_TARGET
This prevents order-state ambiguity.
=== 6. SCHEMA VERSIONING ===
Active Schema
1.0
Middleware Registry
1.0:
SUPPORTED
Older Versions
REJECT unless explicitly supported.
Future incompatible versions
REJECT
Reason
TradingView alerts may remain active after middleware or strategy upgrades.
=== 7. STRATEGY VERSION GATE ===
Allowed Strategy
AtlasTrend 3.2
If alert contains
AtlasTrend 3.1
Result
REJECT
Reason Code
DEPRECATED_STRATEGY_VERSION
This protects against orphaned TradingView alerts.
=== 8. WEBHOOK AUTHENTICATION BOUNDARY ===
Do not place broker credentials in the TradingView alert.
Webhook authentication should be implemented at the ingress layer using mechanisms compatible with the current TradingView webhook capabilities and the chosen infrastructure.
Exact TradingView-specific authentication support:
REQUIRES CURRENT OFFICIAL VERIFICATION
Additional controls
HTTPS
Endpoint Rate Limiting
Strict JSON Validation
Timestamp Validation
Replay Protection
Unguessable Route
Payload Size Limit
=== 9. REPLAY PROTECTION ===
For every incoming request validate
event_id
sent_at
payload_hash
Reject events outside the configured replay window when appropriate.
A replayed valid message must not create another order.

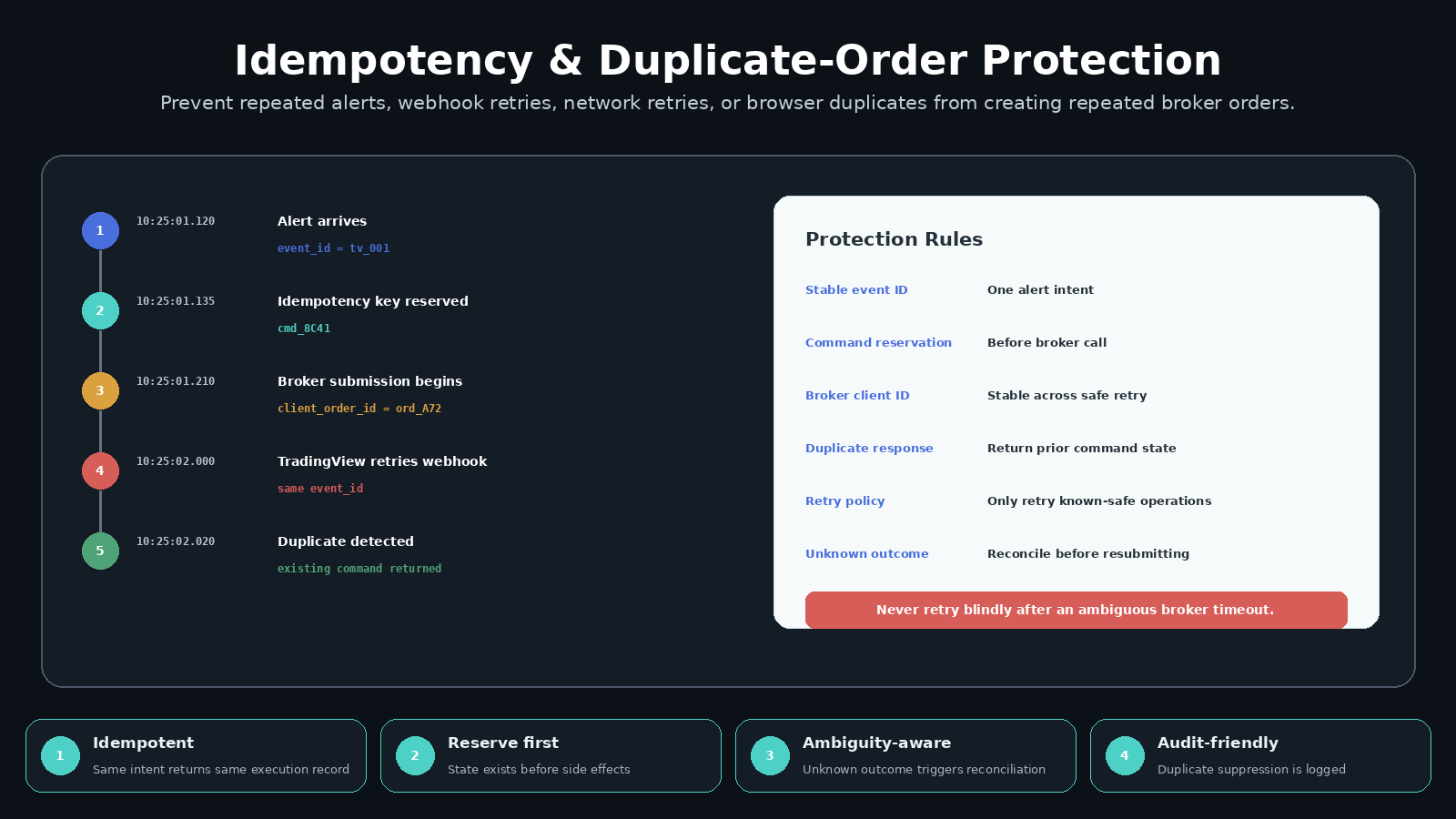

=== 10. DURABLE IDEMPOTENCY ===
Use PostgreSQL.
Suggested idempotency record
event_id
payload_hash
command_id
processing_status
broker_order_id
created_at
updated_at
expires_at
Constraint
event_id must be unique.
=== 11. DUPLICATE EVENT ===
First message
event_id:
atlastrend-...-001
Result
Command
cmd_001
Second identical message
Same event_id
Same payload hash
Result
DUPLICATE
Return
cmd_001 status
Do not create another command.
=== 12. IDEMPOTENCY COLLISION ===
If
Same Event ID
but:
Different Quantity
Different Side
Different Symbol
Different Material Payload
Result
CRITICAL REJECTION
Reason
IDEMPOTENCY COLLISION
Do not choose one payload silently.
=== 13. MULTI-LAYER DUPLICATE PROTECTION ===
Layer 1:
TradingView Event ID
Layer 2:
Database Unique Constraint
Layer 3:
Command State Machine
Layer 4:
Broker Client Order Identity if supported
Layer 5:
Broker Open-Order Reconciliation
Layer 6:
Broker Position Guard
Current Tradovate client-order-identity capability:
REQUIRES CURRENT OFFICIAL VERIFICATION
=== 14. PERSIST-BEFORE-ACKNOWLEDGE ===
Ingress workflow
Receive
→ Validate
→ Persist Inbox Record
→ Create / Locate Command
→ Return
Recommended webhook response
{
"accepted": true,
"command_id": "cmd_001",
"status": "RECEIVED"
}
Meaning
Middleware accepted the intent.
It does NOT mean
Tradovate filled the order.
=== 15. NORMALIZED COMMAND ===
Internal model
command_id
source_event_id
correlation_id
strategy
strategy_version
environment
route_key
instrument
action
side
order_type
requested_quantity
authorized_quantity
limit_price
stop_price
target_price
signal_timestamp
received_timestamp
valid_until
status
metadata
=== 16. SYMBOL MAPPING ===
Source
NQ1!
Broker Target
Actual tradable NQ contract
Create explicit mapping
source_symbol
broker
broker_symbol
contract_month
expiry
tick_size
tick_value
currency
enabled
mapping_version
Do not forward NQ1! blindly.
=== 17. FUTURES ROLLOVER ===
Required process
Determine Active Contract
→ Update Mapping
→ Validate Expiry
→ Approve Mapping
→ Enable New Contract
→ Disable Old Mapping at Policy Cutoff
If mapping is
Missing
Expired
Ambiguous
Result
BLOCK NEW ENTRY
Reason
SYMBOL_MAPPING_INVALID
=== 18. ACCOUNT ROUTING ===
TradingView supplies
route_key:
FUTURES_PAPER_A
Middleware maps internally to the actual paper account.
TradingView should not be allowed to specify an arbitrary Tradovate account identifier.
=== 19. PAPER / LIVE SEPARATION ===
PAPER
Route
FUTURES_PAPER_A
Credentials
Paper credentials
Database Namespace
paper
Kill Switch
paper scope
LIVE
Route
FUTURES_LIVE_A
Credentials
Live credentials
Database Namespace
live
Kill Switch
live scope
Hard Rule
environment = paper
must NEVER route to:
FUTURES_LIVE_A
=== 20. DEFAULT ENVIRONMENT ===
If environment is missing
REJECT
Do not default to live.
=== 21. LIVE ARMING ===
Live routing requires
Live Config Present
Live Credentials Valid
Live Route Enabled
Risk Guardian Healthy
Reconciliation Healthy
Kill Switch Inactive
Approved Software Version
Operator Live-Arming Flag
Until all pass
LIVE_MODE_NOT_ARMED
=== 22. RISK AUTHORIZATION ===
Flow
Normalized Command
→ Risk Guardian
Example
Requested
3 contracts
Risk Guardian
REDUCE SIZE
Maximum
1 contract
Authorization
authorization_id:
risk_981
command_id:
cmd_001
max_quantity:
1
valid_until:
10:35:10
policy_version:
4.2
account_state_version:
acct_775
Middleware MUST NOT submit more than 1 contract.
=== 23. AUTHORIZATION EXPIRY ===
If the command waits beyond
valid_until
re-run risk authorization.
Reason
Account state may have changed.
=== 24. ORDER STATE MACHINE ===
Recommended
RECEIVED
→ VALIDATED
→ AUTHORIZED
→ SUBMISSION_PENDING
→ ACKNOWLEDGED
→ WORKING
→ PARTIALLY_FILLED
→ FILLED
Failure branch
AUTHORIZED
→ BROKER_REJECTED
Ambiguity branch
SUBMISSION_PENDING
→ SUBMISSION_UNKNOWN
→ RECONCILIATION_REQUIRED
Cancellation
WORKING
→ CANCEL_PENDING
→ CANCELLED
=== 25. TRADOVATE ADAPTER ===
Adapter contract
validate_instrument
get_account_state
get_positions
get_open_orders
submit_order
cancel_order
replace_order
get_order
get_order_updates
get_instrument_spec
health_check
Actual Tradovate API endpoints and supported operations:
REQUIRES CURRENT OFFICIAL VERIFICATION
=== 26. BROKER CAPABILITY DECLARATION ===
Adapter should explicitly declare
Market Orders
Limit Orders
Stop Orders
Stop-Limit Orders
Native Brackets
Native OCO
Trailing Orders
Client Order Identity
Streaming Updates
Paper Environment
Live Environment
Unverified capability
Do not assume support.
=== 27. ORDER SUBMISSION ===
Before submission verify
Schema Valid
Authenticated
Not Replay
Not Duplicate
Correct Environment
Valid Symbol Mapping
Allowed Account
Current Risk Authorization
Signal Not Stale
Kill Switch Inactive
Reconciliation Healthy
Order Type Supported
Quantity Valid
Prices Tick-Aligned
=== 28. SIGNAL TTL ===
Policy
Maximum Signal Age
20 seconds
If received after
20 seconds
Result
REJECT
Reason
STALE SIGNAL
=== 29. BROKER ACKNOWLEDGEMENT ===
Normalize
broker_order_id
broker_status
client_order_id
acknowledged_at
broker_message
Do not mark
FILLED
unless broker execution data confirms it.
=== 30. PARTIAL FILLS ===
Requested
3 contracts
Broker reports
1 filled
2 remaining
Middleware state
PARTIALLY_FILLED
Broker position
Long 1
Risk exposure
1 contract
Protective quantity
1 contract
Do not create protective orders for three filled contracts when only one exists unless broker-native bracket semantics guarantee correct behavior.
=== 31. BRACKET ARCHITECTURE ===
Preferred
Broker-Native Bracket
IF
Official Tradovate behavior confirms the required bracket semantics.
Otherwise
Synthetic Middleware Bracket
requires separate failure handling.
=== 32. PROTECTIVE ORDER FAILURE ===
Critical scenario
Entry fills.
Stop creation fails.
Result
CRITICAL INCIDENT
Immediate system response
Block New Risk
Notify Operator
Activate configured protective-order incident workflow
Exact corrective order
Must come from pre-approved policy.
Do not invent whether to retry or flatten.
=== 33. BROKER TIMEOUT ===
Scenario
Order POST sent.
Broker receives order.
Response is lost.
Middleware sees timeout.
MANDATORY RESULT
SUBMISSION_UNKNOWN
NOT
REJECTED
=== 34. TIMEOUT RECOVERY ===
SUBMISSION_UNKNOWN
→ Stop blind resubmission
→ Query Tradovate
→ Search by broker/client identity when supported
→ Inspect recent orders
→ Inspect position state
→ Match candidate
→ Adopt existing order if found
→ Escalate ambiguity if multiple candidates exist
Only after the middleware can establish that no prior broker order exists may resubmission be considered according to policy.
=== 35. RETRY POLICY ===
Safe to Retry More Freely
Status Queries
Position Queries
Account Queries
Unsafe Without Idempotency
Order Creation
Reversal
Replace
Protective Order Creation
Order-creation retry should never be a generic transport retry.
=== 36. RATE LIMITS ===
Tradovate rate-limit behavior
REQUIRES CURRENT OFFICIAL VERIFICATION
Architecture requirement
Recognize rate-limit response
Preserve command state
Apply documented delay
Avoid duplicate creation
Alert operator if control functions are endangered
=== 37. RECONCILIATION ===
Compare
Local Orders
Local Positions
with:
Tradovate Orders
Tradovate Positions
Reconcile
Symbol
Direction
Quantity
Average Price
Working Orders
Stops
Targets
=== 38. RECONCILIATION TRIGGERS ===
After
Acknowledgement
Partial Fill
Full Fill
Cancellation
Unknown Submission
Broker Reconnect
Middleware Restart
Manual Broker Change
Scheduled Interval
Before
New risk submission when policy requires it
=== 39. STARTUP RECOVERY ===
On middleware restart
- Set READY_FOR_NEW_RISK = FALSE.
- Load incomplete commands.
- Load open order journal.
- Read Tradovate positions.
- Read Tradovate open orders.
- Match states.
- Resolve unknown commands.
- Confirm protective orders.
- Restore healthy state.
- Re-enable new risk only after reconciliation.
=== 40. POSITION DRIFT ===
Example
Local
Flat
Tradovate
Long 1 NQ
Result
CRITICAL
Reason
POSITION_DRIFT
Response
Block New Risk
Notify Operator
Reconcile
Do not send another entry merely because TradingView thinks the strategy is flat.
=== 41. KILL SWITCH ===
Required
Global
Account
Strategy
Behavior
BLOCK
New Entries
Scale-Ins
New Risk-Increasing Commands
ALLOW according to policy
Protective Stop Management
Exit
Cancellation
Risk Reduction
Emergency Flatten
Manual operator authorization only.
=== 42. CIRCUIT BREAKER ===
Use for repeated infrastructure failures.
Possible state
CLOSED
OPEN
HALF_OPEN
Example configurable trigger
Repeated Broker Submission Failures
Action
Open Circuit
Block New Risk
Alert Operator
Exact threshold
Configuration Required
=== 43. AUDIT LOG ===
Every lifecycle should preserve
event_id
command_id
correlation_id
strategy
strategy_version
environment
account_route
source_symbol
broker_symbol
action
side
requested_quantity
authorized_quantity
submitted_quantity
broker_order_id
signal_price
stop_price
target_price
average_fill_price
status
risk_decision
risk_policy_version
payload_hash
software_version
timestamps
operator_actions
=== 44. REQUIRED TIMESTAMPS ===
bar_time
sent_at
received_at
validated_at
authorized_at
submitted_at
acknowledged_at
first_fill_at
completed_at
=== 45. LOG SECURITY ===
Never log
Broker Password
API Secret
Private Key
Full Access Token
Refresh Token
Redact sensitive fields.
=== 46. METRICS ===
Track
alerts_received_total
alerts_rejected_total
duplicates_blocked_total
commands_authorized_total
commands_rejected_total
orders_submitted_total
orders_acknowledged_total
orders_rejected_total
orders_unknown_total
partial_fills_total
reconciliation_failures_total
position_drift_total
kill_switch_activations_total
broker_errors_total
=== 47. LATENCY ===
Track
Signal → Receive
Receive → Validate
Validate → Authorize
Authorize → Submit
Submit → Ack
Ack → First Fill
Report
p50
p95
p99
=== 48. READINESS ===
Expose
READY_FOR_NEW_RISK
TRUE only when
Database Healthy
Broker Adapter Healthy
Risk Guardian Healthy
Kill Switch Inactive
Reconciliation Healthy
Live/Paper Route Correct
=== 49. OPERATOR ALERTS ===
CRITICAL
Submission Unknown
Position Drift
Protective Order Failure
Paper/Live Route Violation
Authentication Failure
Repeated Broker Failure
HIGH
Queue Backlog
Reconciliation Delay
Latency Spike
Duplicate Burst
Stale Account State
=== 50. FAILURE-MODE TABLE ===
FAILURE
Duplicate TradingView Alert
DETECTION
Same event_id
RESPONSE
Return original command
No new broker order
FAILURE
Broker Timeout
DETECTION
No response after submission
RESPONSE
SUBMISSION_UNKNOWN
Reconcile
FAILURE
Broker Rejection
RESPONSE
Record rejection
Do not retry blindly
FAILURE
Middleware Restart
RESPONSE
Startup reconciliation
FAILURE
Position Drift
RESPONSE
Block new risk
Alert
Reconcile
FAILURE
Paper Alert Routes Toward Live
RESPONSE
Hard reject
Critical alert
FAILURE
Protective Stop Failure After Fill
RESPONSE
Critical incident procedure
Block new risk
=== 51. DUPLICATE TEST ===
Send
Same event_id
10 times.
Expected
One logical command.
At most one broker order.
Nine duplicates recorded.
PASS CONDITION
No duplicate exposure.
=== 52. TIMEOUT FAILURE-INJECTION TEST ===
Simulation
Broker accepts order.
Middleware response is lost.
Expected
SUBMISSION_UNKNOWN
Then
Broker reconciliation finds original order.
Expected final
Original broker order adopted.
No second order.
=== 53. PARTIAL-FILL TEST ===
Requested
3
Filled
1
Expected
Position = 1
State
PARTIALLY_FILLED
Protective exposure
1
Remaining
2
=== 54. PAPER / LIVE ISOLATION TEST ===
Payload
environment = paper
Route attempt
FUTURES_LIVE_A
Expected
REJECT
No live broker request should be generated.
=== 55. STALE-SIGNAL TEST ===
Signal age
32 seconds
Policy
20 seconds
Expected
REJECT_STALE_SIGNAL
=== 56. RESTART TEST ===
Restart middleware while
One working order exists.
One partially filled order exists.
Expected
No new risk until reconciliation completes.
Working broker state should be reconstructed correctly.
=== 57. KILL-SWITCH TEST ===
Enable account kill switch.
Expected
New Entry
Blocked
Scale-In
Blocked
Exit
Allowed under policy
Protective Stop
Allowed under policy
Emergency Flatten
Not automatic
=== 58. SECURITY CHECKLIST ===
TLS
Required
Secret Store
Required
Broker Credentials in Pine
Forbidden
Replay Protection
Required
Durable Idempotency
Required
Role-Based Operator Access
Recommended
Log Redaction
Required
Ingress Rate Limiting
Recommended
Default-Deny Routing
Required
Live Arming
Required
=== 59. DEPLOYMENT ARCHITECTURE ===
For this order volume, a modular monolith is likely sufficient.
Suggested modules
Ingress
Validation
Risk
Orders
Tradovate Adapter
Reconciliation
Audit
Monitoring
Operator Controls
Suggested infrastructure
HTTPS Reverse Proxy / API Gateway
Application Service
PostgreSQL
Managed Secret Store
Optional Durable Queue
Monitoring / Alerting
=== 60. QUEUE RECOMMENDATION ===
Because expected order volume is low, a queue is not required for throughput.
However, a durable queue may still be valuable for:
Restart Safety
Controlled Retry
Backpressure
Order Prioritization
If used
Entry commands must have short TTL.
Do not allow stale orders to accumulate.
=== 61. HIGH-AVAILABILITY WARNING ===
If two active application instances can submit orders:
Both must share
Idempotency State
Command State
Broker Order Identity
Otherwise redundancy can create duplicate orders.
Do not run two independent live order processors without coordination.
=== 62. PRODUCTION DEPLOYMENT CHECKLIST ===
Before Paper
Webhook Schema Frozen
Strategy Version Enabled
Duplicate Test Passed
Symbol Mapping Tested
Risk Layer Connected
Order State Machine Tested
Logging Enabled
Before Shadow
Realtime Alerts Verified
Stale-Signal Policy Verified
Broker Mapping Verified
Reconciliation Verified
Before Live
Paper/Live Isolation Passed
Broker Authentication Verified
Official Tradovate Capabilities Verified
Timeout Test Passed
Partial-Fill Test Passed
Restart Test Passed
Kill Switch Passed
Protective Failure Procedure Approved
Monitoring Active
Operator Dashboard Active
Audit Retention Configured
Live Version Allowlisted
Live Route Explicitly Armed
=== 63. BROKER-SPECIFIC ITEMS REQUIRING CURRENT OFFICIAL VERIFICATION ===
Tradovate Authentication
REQUIRES VERIFICATION
Current API Endpoint Structure
REQUIRES VERIFICATION
Client Order ID Capability
REQUIRES VERIFICATION
Native Bracket Capability
REQUIRES VERIFICATION
Native OCO Semantics
REQUIRES VERIFICATION
Order Status Streaming
REQUIRES VERIFICATION
Rate Limits
REQUIRES VERIFICATION
Paper / Demo Environment Behavior
REQUIRES VERIFICATION
=== FINAL ARCHITECTURE RECOMMENDATION ===
Use
TradingView
→ Versioned Alert
→ Durable Webhook Inbox
→ Idempotency
→ Normalized Command
→ Risk Authorization
→ Tradovate Adapter
→ Explicit Order State Machine
→ Broker Reconciliation
→ Audit / Monitoring
The most important production controls are:
- Stable TradingView event identity.
- Durable idempotency.
- Strict paper/live isolation.
- Timeout-as-unknown handling.
- Broker reconciliation.
- Partial-fill awareness.
- Kill switches.
- Structured audit logs.
- Stale-signal rejection.
- Explicit operator-controlled live arming.
Primary rule
Never create a second broker order merely because the first submission response was lost.
Reconcile first.
This architecture addresses operational reliability and execution integrity.
It does not predict market direction or guarantee fills, uptime, or profitability.
Connects securely to your tools. The creator never sees your data.
About this skill
TradingView Alert-to-Broker Automation Architect is a production-oriented systems architecture skill for designing reliable, auditable, and failure-aware automated trading pipelines.
Its canonical workflow is
TradingView
- Pine Script Alert
- HTTPS Webhook
- Middleware
- Validation
- Risk / Compliance Gates
- Broker Adapter
- Broker or Exchange
- Order Acknowledgement
- Fill Tracking
- Position Reconciliation
- Audit Logging
The skill is designed for developers, systematic traders, automation engineers, quantitative teams, prop-firm traders, agencies, broker-integration specialists, and advanced TradingView users who need something far more robust than a simple webhook that forwards BUY and SELL messages directly into a broker.
Its central engineering principle is
An alert is an intent message.
A webhook acceptance is not a broker fill.
A broker acknowledgement is not necessarily a fill.
A timeout is not proof that an order was rejected.
A local position record is not automatically the broker's authoritative position state.
The skill therefore separates every important stage of the automation lifecycle.
It can architect
TradingView Alert Generation Pine Script Alert Payloads Webhook Endpoints API Gateway Ingress Schema Validation Authentication Boundaries Replay Protection Idempotency Duplicate-Order Protection Symbol Mapping Futures Contract Mapping Account Routing Paper / Live Separation Risk Authorization Prop-Firm Compliance Gates Order Orchestration Broker Adapters Order State Machines Acknowledgement Handling Partial-Fill Handling Bracket Orders OCO Logic Trailing and Protective Orders Cancellation Cancel/Replace Reversal Handling Retry Policies Timeout Recovery Rate-Limit Handling Broker Reconnection Position Reconciliation Order Reconciliation Startup Recovery Audit Logs Monitoring Latency Measurement Kill Switches Circuit Breakers Incident Management High Availability Failure Injection Deployment Safety
The agent can design broker adapters for
Tradovate Interactive Brokers Alpaca Tradier Crypto Exchanges Generic REST-Style Broker APIs Internal Order Management Systems Paper Broker Simulators
Broker-specific implementation details are treated carefully.
Current API endpoints, authentication flows, rate limits, order capabilities, symbol conventions, supported order types, and connection requirements should be verified from authoritative documentation before production implementation.
When those details are not supplied or verified, the agent designs an abstract adapter rather than inventing broker behavior.
The skill uses a layered architecture
Layer 1 — Signal Generation
TradingView and Pine Script determine when the user's strategy creates an intent.
Layer 2 — Transport
TradingView sends the alert through an HTTPS webhook.
Layer 3 — Ingress
The middleware receives the request.
Layer 4 — Validation
The request is checked for
Schema Version Authentication Timestamp Replay Environment Allowed Strategy Allowed Account Allowed Symbol
Layer 5 — Intent Normalization
The alert is transformed into an internal trade command.
Layer 6 — Governance
Risk and compliance systems determine whether the command is authorized.
Layer 7 — Order Orchestration
The middleware manages
Idempotency Ordering Retries Timeouts Command State Concurrency
Layer 8 — Broker Adapter
The normalized command is translated into the selected broker's API model.
Layer 9 — Broker State
The system receives
Acknowledgements Working-Order Status Partial Fills Full Fills Cancellations Rejections Expirations
Layer 10 — Reconciliation
Middleware state is compared with broker state.
Layer 11 — Observability
The entire lifecycle is recorded through
Structured Logs Metrics Tracing Alerts Audit Events
Layer 12 — Operator Control
Humans retain explicit control over
Paper Mode Live Mode Strategy Enablement Account Enablement Kill Switches Incident Response
The skill recommends separating signal logic from broker-specific execution.
Instead of embedding broker-specific logic into TradingView, it prefers:
TradingView
- Normalized Trade Intent
- Middleware
- Active Broker Adapter
This makes it easier to
Change Brokers Route Multiple Accounts Separate Paper and Live Centralize Risk Controls Centralize Logging Centralize Symbol Mapping Centralize Duplicate Protection
The skill designs versioned webhook schemas.
A typical normalized webhook can contain
Schema Version Event ID Source Strategy Strategy Version Environment Event Type Source Symbol Broker Symbol Hint Timeframe Action Side Order Type Quantity Signal Price Stop Price Target Price Bar Timestamp Send Timestamp Metadata
It strongly recommends separating
Action
from
Side
because
Buy
can mean very different things.
It could mean
Open Long Close Short Increase Long Reverse Short to Long
Likewise
Sell
could mean
Open Short Close Long Reduce Long Reverse Long to Short
A normalized action model can instead use
Open
Close
Reduce
Reverse
Modify_stop
Modify_target
Cancel
Flatten
while side remains
Buy
Sell
This makes state transitions explicit.
The agent designs webhook schema versioning.
Every payload should ideally contain
schema_version
because
TradingView alerts can remain active for long periods. Strategies evolve. Middleware changes. Multiple deployed strategy versions may coexist.
The agent can reject deprecated or incompatible schemas rather than interpreting them incorrectly.
The skill also recommends
strategy_version
inside the payload.
Old TradingView alerts are a serious operational risk.
A strategy may be upgraded while an older alert remains active.
The middleware can therefore maintain an allowlist of active strategy versions.
Example
Allowed
3.2
Received
3.1
Result
Reject Deprecated Strategy Version
The skill designs event identity.
A stable
event_id
should identify one logical TradingView event.
The same logical event retransmitted multiple times should keep the same ID.
A genuinely new event should receive another ID.
This enables durable idempotency.
Idempotency is treated as one of the most important controls in the entire architecture.
The goal is
The same logical signal must not create duplicate broker exposure because of:
Repeated Alerts Network Retries Middleware Restarts Queue Retries Timeouts Multiple Workers Broker Response Loss
The agent can design an idempotency record containing
Idempotency Key Source Event ID Command ID Payload Hash Processing State Broker Order ID Created Timestamp Updated Timestamp Expiration
It can also detect
Same Event ID Different Payload
as an
Idempotency collision
This should not be resolved silently.
The system should reject the conflicting message and raise an operational alert.
Duplicate-order protection is designed in layers.
Layer 1
Source Event ID
Layer 2
Durable Middleware Idempotency
Layer 3
Broker Client Order Identity where supported
Layer 4
Command-State Validation
Layer 5
Position / Open-Order Validation
Layer 6
Optional Temporal Guards
The skill explicitly warns that time-based deduplication alone is not sufficient.
A rule such as
Ignore identical alerts received within 10 seconds
can help, but it should not replace a durable logical identity model.
The skill handles one of the most dangerous automation scenarios:
Broker Timeout After Order Acceptance
Example
Middleware submits an order.
Broker receives the order.
Broker accepts it.
Network connection fails before the response reaches middleware.
Middleware sees
Timeout
A naive implementation may submit the same order again.
That can create duplicate exposure.
The correct architecture is
Mark Submission as UNKNOWN
- Stop Blind Retry
- Query Broker State
- Search by Client Order Identity / Recent Orders
- Reconcile
- Adopt Existing Order if Found
- Resubmit Only if Absence Can Be Established Safely
The skill therefore distinguishes
Not_submitted
Submission_pending
Acknowledged
Submission_unknown
Rejected
Working
Partially_filled
Filled
Cancel_pending
Cancelled
Expired
Reconciliation_required
It never compresses the order lifecycle into
success = true
or
success = false
because those states do not capture real broker behavior.
The agent designs order state machines.
A typical lifecycle can be
Received
- VALIDATED
- AUTHORIZED
- SUBMISSION_PENDING
- ACKNOWLEDGED
- WORKING
- PARTIALLY_FILLED
- FILLED
Alternative paths include
Validated
- REJECTED_BY_POLICY
or
Submission_pending
- SUBMISSION_UNKNOWN
- RECONCILIATION_REQUIRED
The skill can design retry policies.
Retries are classified according to whether they are safe.
Usually safer retry operations include
Status Queries Account Queries Position Queries Read Operations
Potentially unsafe retries include
Create Order Reverse Position Replace Protective Order
The skill can define
Maximum Attempts Timeout Initial Delay Backoff Jitter Retryable Errors Non-Retryable Errors Reconciliation Requirements
Blind unlimited retries are rejected.
The agent can implement exponential backoff conceptually while keeping broker-specific requirements separate.
It also distinguishes retryable from non-retryable broker errors.
Typical non-retryable conditions may include
Invalid Symbol Invalid Quantity Account Disabled Unsupported Order Type Policy Rejection Malformed Request Insufficient Buying Power
The middleware should not repeatedly resubmit these failures.
Broker acknowledgement is normalized separately from fill state.
Possible acknowledgement fields include
Broker Order ID Client Order ID Broker Status Acknowledged Timestamp Broker Message
A broker acknowledgement proves only that the broker received or registered the order according to that broker's semantics.
It does not necessarily prove execution.
The skill tracks partial fills explicitly.
Possible fields include
Requested Quantity Filled Quantity Remaining Quantity Average Fill Price Fill Count Latest Fill Time Fees
A partially filled order creates real exposure.
The system should not wait for a complete fill before recognizing position risk.
Protective stop and target quantities must reflect actual filled exposure.
The skill supports bracket-order architecture.
Preferred when supported
Broker-Native Bracket
because protection can remain on the broker side even if middleware becomes unavailable.
If the broker does not support an appropriate native bracket, middleware can emulate one.
However, the skill explicitly highlights the additional risks of synthetic brackets:
Entry Fills but Stop Placement Fails Target and Stop Race Partial Fill Quantity Mismatch Network Failure After Entry Cancellation Delay Middleware Outage
The architecture must define what happens if an entry fills but protection cannot be established.
Possible actions may include
Retry Reduce Exposure Flatten Activate Kill Switch
but the exact action must come from the operator's authorized policy.
The skill does not invent an emergency trading action.
OCO behavior also receives detailed analysis.
If broker-native OCO is available and suitable, it can reduce middleware race conditions.
If middleware emulates OCO, the system must handle
Stop Fill Delayed Target Cancellation Target Fill After Stop Unexpected Position Reversal
Position reconciliation is therefore mandatory.
The skill supports explicit symbol mapping.
TradingView symbols and broker symbols often differ.
Examples include
NQ1!
Nqu26
MNQ1!
Mesu26
Btcusd
Exchange-Specific Perpetual Symbols
The architecture can maintain mappings with
Source Symbol Source Venue Broker Broker Symbol Instrument Type Contract Month Tick Size Tick Value Currency Multiplier Enabled Status
For futures, continuous TradingView symbols require special care.
A strategy may generate
NQ1!
while the broker requires
Nqu26
or another active contract.
The system should define
Contract Selection Rule Roll Date Expiry Validation Manual Override Symbol Freeze Near Rollover
Missing, ambiguous, expired, or disabled mappings should fail closed for new risk.
The agent designs paper/live isolation.
Recommended environments
Development Test Paper Staging Live
Live must never be inferred because an environment field is missing.
A safer default is
Non-live
Paper and live should use distinct
Credentials Account Routing State Namespaces Logs Monitoring Broker Adapters Kill-Switch State
The system should make it technically difficult for a paper alert to reach a live account.
The skill recommends explicit live activation.
A possible live-arming checklist includes
Operator Approval Live Account Configured Live Credentials Present Risk Policy Active Kill Switch Healthy Reconciliation Healthy Paper Tests Completed Deployment Version Approved Live Environment Enabled
Operator interfaces should display
Live
or
Paper
prominently.
Authentication is separated into two boundaries.
Webhook-to-Middleware Authentication
and
Middleware-to-Broker Authentication
The webhook receiver may use approved mechanisms such as
API Gateway Authentication Unguessable Endpoint Routing Trusted Relay Timestamp Validation Replay Protection Other Supported Controls
TradingView-specific webhook authentication capabilities must be verified before relying on a particular header or signing method.
The agent never invents unsupported TradingView behavior.
Middleware-to-broker authentication should use the broker's current supported mechanism.
Possibilities may include
OAuth API Key Signed Request Session Token Gateway Session Client Certificate
depending on the broker.
Broker credentials must be stored in an appropriate secrets-management system.
They should not appear in
Pine Script Webhook Payloads Source Code Logs Public Configuration Chat Messages
The skill designs secret rotation and failure handling.
Possible concerns include
Token Expiry Rotation Revocation Compromised Credential Response Environment Separation
If broker authentication fails, the system should not blindly continue submitting.
It may
Pause New Risk Alert Operator Activate a Circuit Breaker Require Reauthentication
according to policy.
The skill includes replay protection.
A valid intercepted request should not create another trade if replayed.
Possible controls include
Event ID Timestamp Replay Window Durable Idempotency
The architecture supports risk and compliance gates.
A normalized trade command can pass through
AI Trading Risk & Position Sizing Guardian
and
Prop Firm Rule Compliance Trading Agent
before reaching the broker.
A valid TradingView signal can still be blocked because of
Daily Loss Drawdown Position Size Portfolio Exposure Prop-Firm Rule Maximum Contracts Kill Switch Stale Account State
The risk layer can return an authorization object such as
Authorization ID Command ID Maximum Quantity Valid Until Policy Version Account-State Version
The order orchestrator must not exceed the authorized quantity.
Authorization can expire because
Another Order Fills P&L Changes Exposure Changes Margin Changes Daily Limits Change
For concurrent strategy systems, the agent recognizes risk-reservation problems.
Two agents can independently observe the same remaining risk capacity.
Both can pass individually.
Together they may exceed the account limit.
A centralized reservation system can prevent this.
Possible reservation fields include
Reservation ID Account Instrument Authorized Risk Quantity Expiration Status
The agent supports durable queue architecture.
A queue can separate
Webhook Ingress
from
Broker Submission
Benefits include
Durability Backpressure Retry Management Restart Recovery Ordering
But queues also introduce
Latency Stale Command Risk Operational Complexity
The skill therefore requires command expiration.
A signal may contain
valid_until
or middleware can calculate a TTL from an operator-defined strategy policy.
Expired entry signals should not be sent automatically.
The agent can define stage-by-stage latency budgets.
Possible latency measurements include
Signal to Webhook Receive Webhook Receive to Validation Validation to Risk Authorization Authorization to Broker Submission Submission to Broker Acknowledgement Acknowledgement to First Fill Signal to First Fill
The system can track
p50 p95 p99
latencies.
Latency tolerance is strategy-specific.
A five-minute trend strategy may tolerate more delay than a very short-duration scalping strategy.
The skill does not create a universal latency threshold.
It supports stale-signal rejection.
If
Current Time - Signal Timestamp > Strategy Maximum Signal Age
then
Reject Stale Signal
The maximum acceptable age must come from operator policy.
The agent can design asynchronous webhook processing.
A high-reliability pattern is
Receive
- Validate
- Persist
- Enqueue
- Return
The response can state
Received
rather than falsely claiming
Filled
Persistence before acknowledgement reduces the chance that the system tells TradingView a command was accepted and then loses the command during a crash.
For database-and-queue systems, the agent can recommend
Transactional Outbox
to avoid inconsistent states between
Database Commit and Queue Publication
An ingress inbox can also store
Source Event ID Payload Hash Received Timestamp Processing Status
for durable duplicate detection.
Repeatedly failing messages can enter a
Dead-Letter Workflow
with
Failure Reason Attempt Count Last Error Command Context Manual Recovery Action
The system must not silently discard failed trade commands.
Kill-switch design is a core capability.
Possible kill-switch scopes include
Global Account Strategy Instrument Broker
Recommended default principle
Block Risk-Increasing Actions
while allowing
Risk-Reducing Exits Cancellations Protective Actions
according to explicit operator policy.
A kill-switch state record can include
Scope Enabled Reason Enabled By Enabled At Expiration
The skill explicitly separates
Kill Switch
from
Emergency Flatten
A kill switch does not automatically have to flatten positions.
Flattening is a broker action with additional risk and failure modes and should require explicit authorization.
Kill switches may be triggered by
Operator Action Daily-Loss Limit Position Drift Broker Authentication Failure Repeated Broker Errors Stale Account State Queue Failure Database Failure Duplicate Activity Reconciliation Failure
The agent can design circuit breakers.
Example
After N consecutive broker order failures
Open circuit
Block new risk
Alert operator
The exact threshold must be supplied or configured.
Paper mode, live mode, dry-run mode, and shadow mode are separated.
Dry Run
Validate and build broker request but do not submit.
Shadow Mode
Process production-like alerts but simulate broker execution.
These are valuable for controlled rollout.
Broker adapters use a normalized interface.
Typical operations may include
Validate Instrument Read Account State Read Positions Read Open Orders Submit Order Cancel Order Replace Order Read Order Receive Order Updates Read Instrument Specification Health Check
Exact method names depend on implementation.
Every adapter should declare capabilities.
Possible capability fields include
Supports Market Orders Supports Limit Orders Supports Stop Orders Supports Stop-Limit Supports Brackets Supports OCO Supports Trailing Supports Client Order ID Supports Partial-Fill Updates Supports Streaming Supports Paper Supports Live Position Mode
If a strategy requires a capability that is not verified
Reject unsupported capability
The system should not silently emulate advanced order behavior without explicit design.
Tradovate-specific architecture can consider
Futures Contract Mapping Account Selection Session Lifecycle Order State Fills Paper/Live Routing Contract Expiration Connection Handling
Interactive Brokers architecture can consider
Contract Qualification Client/Session Lifecycle Order Identity Order Status Events Partial Fills Reconnect Behavior Account Routing Gateway or Service Dependencies Where Applicable
Alpaca architecture can consider
Paper/Live Separation Asset Availability Client Order Identity Trading Session Rules Order State
Tradier architecture can consider
Account Routing Asset Classes Order Types Session Rules Acknowledgement and Status Tracking
Crypto exchange architecture can consider
Spot vs Derivatives Hedge vs Net Mode Signing Timestamp / Nonce Quantity Precision Price Precision Minimum Notional Rate Limits Maker/Taker Fees Funding Reduce-Only Orders Post-Only Orders Liquidation Risk Exchange Outages
No single crypto model is assumed universal.
The skill normalizes broker statuses into internal states while preserving the raw broker status for audit.
Possible internal states include
New
Accepted
Working
Partial
Filled
Cancel_pending
Cancelled
Rejected
Expired
Unknown
Errors can also be normalized by
Category Retryability Broker Code Broker Message Severity Operator Action
Possible categories include
Auth
Validation
Rate_limit
Network
Timeout
Broker_rejection
Market_closed
Insufficient_margin
Symbol
Account
Unknown
The skill treats reconciliation as mandatory for serious live automation.
Reconciliation compares
Local Expected State
against
Broker-Reported State
for
Positions Open Orders Quantities Average Prices Protective Orders
Possible reconciliation triggers include
After Fill After Acknowledgement Before New Order Periodic Interval Reconnect Restart Timeout Manual Broker Action
Startup reconciliation is especially important.
On service restart
Disable New Risk
- Load Local Journal
- Read Broker Orders and Positions
- Reconcile
- Resolve Differences
- Re-enable According to Policy
The system should not assume cached local state remains correct after a restart.
Position drift can be classified explicitly.
Example
Local
Long 1 NQ
Broker
Long 2 NQ
Result
Position drift
Possible response
Block New Risk Alert Operator Reconcile
Corrective trading actions require policy authorization.
Manual broker actions must also be detected.
A user may manually
Close Position Scale In Scale Out Change Stop
The middleware should determine whether that
Takes Precedence Pauses Strategy Triggers Reconciliation Activates Kill Switch
according to policy.
The skill can design audit logs.
Every command can record
Event ID Command ID Correlation ID Strategy Strategy Version Environment Account Route Source Symbol Broker Symbol Action Side Requested Quantity Authorized Quantity Submitted Quantity Broker Order ID Signal Price Requested Stop Requested Target Average Fill Status Reason Risk Policy Version Compliance Policy Version Payload Hash Software Version Operator Action All Relevant Timestamps
Sensitive data should never be logged in plaintext.
The skill recommends structured logging rather than only free-form text.
Every end-to-end order should carry a
correlation_id
so one TradingView signal can be traced through
Webhook Command Authorization Broker Order Fill Position Change Reconciliation
The agent can design operational metrics such as
Alerts Received Alerts Rejected Duplicates Blocked Commands Authorized Commands Rejected Orders Submitted Orders Acknowledged Orders Rejected Unknown Submissions Partial Fills Reconciliation Failures Position Drift Kill-Switch Activations Broker Errors
Health and readiness are separated.
A service may be alive while not being safe to accept new orders.
The architecture can therefore expose
Ready_for_new_risk
True / false
based on
Broker Connection Database Queue Risk Service Kill Switch Reconciliation Health
The agent can define operator alerts for
Broker Failures Unknown Submission Outcomes Position Drift Stale Account State Kill-Switch Activation Queue Backlog Database Failure Latency Spikes Duplicate Spikes Credential Expiration Order Rejection Spikes
The skill explicitly rejects casual claims of exactly-once distributed message delivery.
A more realistic design goal is
At-Least-Once Message Delivery + Idempotent Processing + Broker Reconciliation
to achieve effectively-once business behavior.
Message ordering is also addressed.
Alerts can arrive out of order.
Example
EXIT arrives while ENTRY is still processing.
Possible controls include
Strategy Sequence Number Bar Timestamp Event Timestamp Per-Strategy Queue Ordering State Transition Validation
A command should be rejected or reconciled if its transition is incompatible with current broker state.
The skill never treats TradingView strategy state as authoritative live broker state because the two can diverge due to:
Lost Alert Rejected Broker Order Partial Fill Manual Broker Action Service Outage TradingView Reload Strategy Recalculation Webhook Delay
The architecture can include heartbeats to detect silent channel failure.
A heartbeat must never generate an order.
Before deployment, the agent can perform a TradingView alert configuration audit:
Correct Strategy Correct Strategy Version Correct Symbol Correct Timeframe Correct Environment Correct Webhook Correct Schema Correct Alert Frequency Correct Bar-Close / Intrabar Behavior
Pine Script repainting must be audited before automation.
The broker pipeline cannot make a repainting signal honest.
Relevant checks include
Bar Confirmation Higher-Timeframe Lookahead Future-Confirmed Pivots Intrabar Recalculation Historical vs Realtime Behavior
The agent supports strict price and quantity validation.
Price controls include
Tick Alignment Positive Price Stop/Limit Geometry Allowed Precision Minimum Increment
Quantity controls include
Positive Quantity Whole Futures Contracts Share Increments Lot Steps Minimum Notional Broker Limits Authorized Maximum
For CLOSE or REDUCE commands, quantity should not exceed the broker-reported position unless the command is explicitly an authorized reversal.
The skill can design market-hours handling.
It can distinguish
Regular Trading Hours Extended Hours Futures Session Maintenance Break Holiday Crypto 24/7
An entry received while the market is closed should not automatically become a future-market-open order unless the architecture explicitly supports that behavior.
Signals should normally expire according to strategy TTL.
The agent provides production-grade testing recommendations.
Unit Tests
Schema Validation Symbol Mapping Idempotency State Transitions Price Rounding Quantity Rounding
Contract Tests
Broker Adapter Interface Status Mapping Error Mapping
Integration Tests
Webhook Database Queue Paper Broker Risk Service
Failure Injection
Duplicate Webhook Timeout After Broker Acceptance Database Restart Queue Delay Broker Disconnect Partial Fill Cancellation Race Stop Failure Stale Account State Unknown Submission Outcome
Paper Trading
Full End-to-End Validation
Shadow Mode
Production-Like Signal Flow Without Live Order Submission
Controlled Live Rollout
Only under the user's own governance process.
A mandatory duplicate test is
Send the exact same event ten times.
Expected
One Logical Command No More Than One Broker Order All Additional Messages Recorded as Duplicates
A mandatory timeout test is
Broker accepts order. Response is lost.
Expected
Submission_unknown
- RECONCILIATION
- NO BLIND DUPLICATE SUBMISSION
A mandatory restart test should verify state restoration when:
Order Working Partial Fill Exists Command Is Queued
A mandatory paper/live isolation test should prove that a paper alert cannot technically route to a live account.
The skill provides a security checklist covering
Tls
Secret Storage Credential Rotation Least Privilege Environment Separation Replay Protection Idempotency Log Redaction Administrative Authentication Role Permissions Ingress Rate Controls Database Access Controls Audit Integrity
Unknown values should fail closed.
Examples
Unknown Side Unknown Action Unknown Environment Unknown Account Unknown Symbol Unknown Order Type
must never silently default into a live trade.
Webhook metadata is treated as untrusted.
Metadata must not override protected fields such as
Live Account Risk Policy Maximum Quantity Kill Switch Broker Credentials
The skill can design account routing using safe internal keys rather than allowing TradingView to submit arbitrary broker account IDs.
Example
route_key
Futures_paper_a
Middleware maps that allowlisted key internally.
Multi-broker or multi-account fan-out is supported.
One TradingView signal can create child commands for
Account A Account B Account C
Each child must have
Independent Risk Authorization Independent Compliance Check Independent Idempotency Independent Broker Order Independent Reconciliation
The agent does not assume copy trading is allowed.
Cross-account firm or policy restrictions must be evaluated before fan-out.
The skill provides a comprehensive audit mode for existing systems.
It reviews
TradingView Alert Logic Payload Structure Schema Version Authentication Replay Protection Idempotency Duplicate Handling Symbol Mapping Account Routing Paper/Live Isolation Risk Gate Prop-Firm Gate Broker Adapter Client Order Identity Retry Behavior Timeout Semantics Acknowledgement Semantics Partial Fills Cancellation Replacement Bracket/OCO Logic Reconciliation Startup Recovery Kill Switch Audit Logging Secrets Monitoring Latency Stale Signals Deployment Safety
Critical findings can include
No Durable Idempotency Blind Retry After Submission Timeout Live Credentials Stored in Source No Paper/Live Isolation No Kill Switch No Broker Reconciliation Protective Stop Not Verified After Fill Multiple Live Workers Without Shared Deduplication Broker Timeout Treated as Rejection Local Position State Treated as Authoritative After Restart
The commercial objective of this skill is to turn a fragile alert-forwarding script into a real order-routing architecture with explicit state, fault tolerance, auditability, broker reconciliation, and operator control.
Find more skills like this on the Claude Skills Marketplace, the Codex Skills Marketplace and the Gemini Skills Marketplace, or browse Claude Skills for Trading & Investing.
TradingView Alert-to-Broker Automation Architect can design robust automation architecture, but no distributed trading system can guarantee perfect availability, zero latency, exactly-once network delivery, or zero operational risk.
TradingView alerts can be delayed, duplicated, misconfigured, or fail to arrive.
Public internet connectivity can fail.
Middleware can fail.
Databases and queues can fail.
Broker sessions can disconnect.
Broker APIs can reject or delay orders.
Exchange infrastructure can experience disruptions.
Broker acknowledgements do not always mean that an order has filled.
An order-submission timeout can be ambiguous.
The broker may have accepted the order even though middleware never received the response.
This is why blind retries of order creation can be dangerous.
Partial fills can create exposure before the requested order is fully complete.
Protective stop or target quantities must therefore track actual fills.
Bracket and OCO behavior differs between brokers.
Middleware-emulated bracket or OCO logic introduces additional race conditions and failure modes.
Broker-native behavior should be verified before relying on it.
Cancel and replace operations may not be atomic.
An order can fill while cancellation is in progress.
A replacement process may briefly leave protection in an uncertain state depending on broker semantics.
Reconciliation is therefore necessary.
Paper trading does not reproduce every live behavior.
Differences can include:
Slippage
Partial Fills
Liquidity
Queue Priority
Exchange Latency
Broker Rejections
Market Impact
Broker and exchange APIs evolve.
Authentication, endpoints, supported order types, rate limits, session behavior, and status semantics can change.
Current official documentation should therefore be verified before implementation.
TradingView continuous futures symbols may not map directly to tradable broker contracts.
Futures rollover must be explicitly handled.
TradingView strategy state may differ from broker state because of:
Lost Alerts
Rejected Orders
Partial Fills
Manual Broker Actions
TradingView Reloads
Service Restarts
Network Failures
The broker or exchange should therefore remain the authoritative source for actual broker positions when the system is designed that way.
Multi-account routing introduces additional concurrency and aggregate-risk problems.
Two individually valid orders can jointly violate portfolio or prop-firm constraints.
Centralized risk state or reservation may be required.
High availability can itself create duplicate-order risk if multiple workers submit the same command.
Shared durable idempotency is required for redundant live systems.
A kill switch reduces operational risk but cannot guarantee instant cancellation or liquidation.
It also should not automatically flatten positions unless the operator explicitly authorizes that behavior.
Protective-order failure after an entry fill is a critical operational scenario.
The correct response depends on the operator's pre-approved incident policy.
This skill must not invent whether the system should retry, reduce, or flatten.
Security depends on the deployment environment.
The architecture can recommend:
Secret Management
TLS
Least Privilege
Replay Protection
Role-Based Access
Log Redaction
but implementation quality remains the responsibility of the deployment team.
No architecture can guarantee profitable trading.
The skill addresses infrastructure reliability, execution integrity, traceability, and operational control only.
How to use
- 1
Connect your agent to the Agensi MCP
Copy the prompt and paste it into Claude, ChatGPT, Cursor or any agent that supports MCP. It sets up the connection for you. Manual setup
- 2
Sign in to Agensi
Your agent shows a sign-in link. Sign in and click Allow.
- 3
Ask for what you need
Your agent loads this skill and uses it on your task. It always asks before buying a skill.
Reviews
No reviews yet
Be one of the first to try it. Every listed skill goes through the trust checks below.
Security scanned
Checked by our 8-point scan before listing
Fresh listing
Recently published to Agensi
Money-back guarantee
Doesn't do what its page promises? You get your money back.
Trust & safety
Security scan
Security scan passed 2 months ago
Permissions
File Scopes
Use Read Files to inspect authorized Pine Script, TradingView alert payloads, webhook schemas, middleware source code, broker-adapter documentation, order logs, broker responses, account snapshots, risk policies, prop-firm rules, reconciliation reports, incident logs, deployment configuration, test results, and architecture documentation. Use Write Files only when the user requests derived artifacts such as: System Architecture Specifications Webhook Schemas Normalized Order Contracts Broker Adapter Interfaces Order State Machines Sequence Diagrams Failure-Mode Tables Idempotency Specifications Retry Policies Reconciliation Procedures Audit-Log Schemas Monitoring Specifications Incident Runbooks Test Plans Deployment Checklists Migration Plans Security Reviews Technical Documentation Use Browser when current authoritative public documentation is necessary and authorized. For broker-specific implementation questions, prioritize: Official Tradovate Documentation Official Interactive Brokers Documentation Official Alpaca Documentation Official Tradier Documentation Official Crypto Exchange Documentation Official TradingView / Pine Script Documentation Do not invent current: API Endpoints Authentication Flows Rate Limits Order-Type Support Client Order ID Behavior WebSocket Events Trading Sessions Account Restrictions Broker Error Codes when those facts can change. Always distinguish: ARCHITECTURE RECOMMENDATION A system-design recommendation. VERIFIED PLATFORM BEHAVIOR Behavior supported by current authoritative documentation. USER-SUPPLIED BROKER BEHAVIOR Broker behavior supplied by the user. ASSUMPTION A clearly disclosed assumption. UNKNOWN A behavior that has not been verified. REQUIRES BROKER VERIFICATION A broker-specific capability that must be confirmed before implementation. Do not store or recommend storing broker credentials in: Pine Script Webhook Payloads Source Code Logs Public Configuration Do not expose credentials in generated examples. The core reliability rules are: A TradingView alert is an intent. Webhook acceptance is not a broker fill. Broker acknowledgement is not necessarily a fill. A timeout is not proof of rejection. Local middleware position state is not automatically authoritative. Never blindly retry an order creation after an ambiguous broker timeout. First classify the order as: SUBMISSION_UNKNOWN then reconcile with broker state. Use durable idempotency for live trading architectures. In-memory deduplication alone is not sufficient for restart-safe automation. Do not rely only on temporal duplicate suppression. Use stable event identity. Where supported, map that identity to broker client order identity. Treat: same event ID + different payload as a critical idempotency collision. Do not infer trading action from BUY or SELL alone. Always distinguish: OPEN CLOSE REDUCE REVERSE CANCEL MODIFY_STOP MODIFY_TARGET FLATTEN from: BUY SELL Do not allow arbitrary account identifiers received from TradingView to route directly into broker accounts. Prefer an internal allowlisted account-route mapping. Default environment should be non-live. Live mode should require explicit operator-controlled activation. Paper and live should remain separately identifiable through: Credentials Account Routes State Logs Monitoring Kill-Switch Scope When new account risk is blocked, risk-reducing actions should remain available according to the operator's policy. Do not make emergency flattening an automatic consequence of kill-switch activation unless explicitly authorized. After: Broker Disconnect Middleware Restart Ambiguous Submission Position Drift Account-State Conflict perform reconciliation before accepting additional live risk when required by policy. Do not assume a TradingView strategy's internal position state equals the broker's actual position. Manual broker actions, partial fills, order rejection, webhook failure, and service outages can create divergence. Before live deployment, test: Duplicate Alerts Submission Timeout Partial Fill Broker Disconnect Middleware Restart Kill Switch Stale Alert Out-of-Order Alert Paper/Live Isolation Protective Order Failure Reconciliation Drift This skill provides trading-infrastructure architecture and engineering support. It does not provide personalized investment advice, choose trade direction, or guarantee system availability or order execution.
