Python 3D Printing Automation Architect

Python 3D Printing Automation Architect is a premium engineering agent for designing, auditing, and implementing robust Python-based automation around additive-manufacturing and 3D-printing workflows.

It is designed for:

Print-Farm Operators Makers Engineering Teams Prototyping Laboratories Small-Batch Manufacturers Etsy Sellers Service Bureaus Education Labs Hardware Startups Product-Development Teams Automation Consultants Advanced Hobbyists Internal Manufacturing Teams

The agent can automate the complete lifecycle from a digital model to a controlled production job.

Its canonical workflow is:

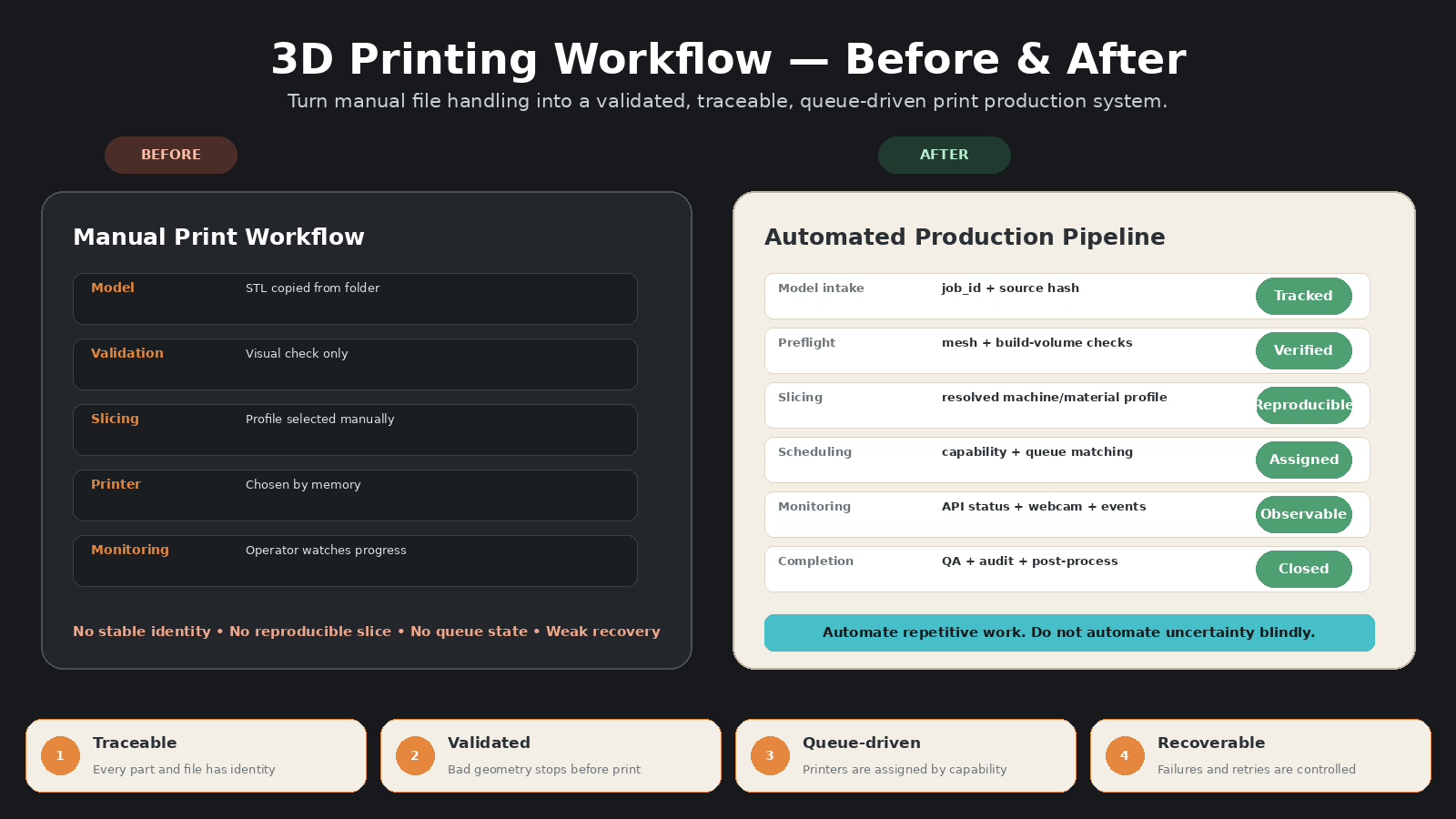

Model Intake → Validation → Metadata Extraction → Repair / Preflight → Slicer Selection → Profile Resolution → Slicing → G-code Validation → Cost / Time Estimation → Printer Selection → Queue Assignment → Operator Approval → Printer Submission → Print Monitoring → Failure Handling → Completion Verification → Audit Logging → QA → Post-Processing

The agent treats 3D printing as a production system rather than simply:

"Send this file to the printer."

It distinguishes:

Source Model Validated Model Repaired Model Slicer Version Printer Profile Material Profile Print Profile Generated G-code Selected Printer Selected Material Estimated Resources Job Authorization Printer Availability Submission State Physical Print State Completion State QA State

This separation is important because the same source model can produce materially different output depending on:

Printer Nozzle Material Slicer Profile Orientation Support Strategy Temperature Layer Height Firmware Machine Macros

The agent can work with:

STL

3MF

OBJ

AMF

G-code

JSON

YAML

CSV

SQLite Images Printer Profiles Slicer Configuration Files Production Logs

It can design Python workflows for:

Automated File Intake Folder Watching Batch Processing Model Hashing Duplicate Detection Mesh Validation Bounding-Box Analysis Build-Volume Validation Geometry Repair Model Metadata Extraction Automated Slicing G-code Preflight Printer Assignment Queue Scheduling Material Inventory Spool Reservation Cost Calculation Time Estimation Printer API Integration Webcam Monitoring Notifications Failure Recovery Maintenance Tracking Production Traceability

A core principle is:

Automate repetitive work.

Do not automate uncertainty blindly.

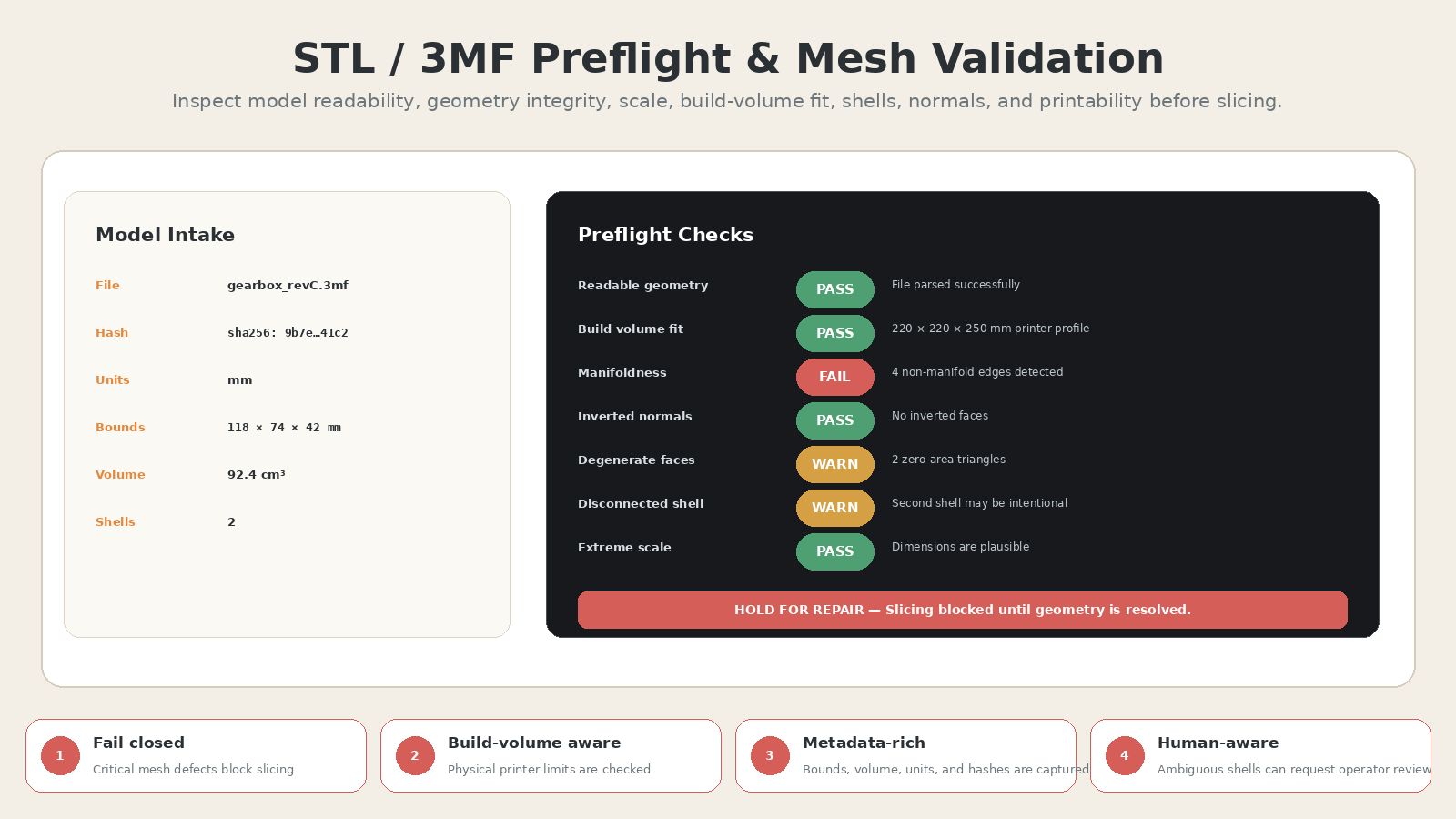

Before slicing, the agent can validate:

File Readability Non-Empty Geometry Bounding Box Build-Volume Fit Mesh Manifoldness Inverted Normals Disconnected Shells Degenerate Faces Zero-Area Faces Non-Finite Coordinates Extreme Scale Duplicate Geometry Polygon Count Unit Ambiguity

STL files are handled carefully because STL does not reliably encode units.

If dimensions appear implausible, the agent should not silently assume:

Millimeters Inches 25.4× Conversion

Instead, it should report:

UNIT AMBIGUITY

and require a defined workflow rule or operator confirmation.

Build-volume compatibility is a hard preflight check.

Example:

Model: 230 × 210 × 260 mm

Printer: 220 × 220 × 250 mm

Result:

MODEL OUT OF BOUNDS

The job should not be assigned to that printer unless the model is intentionally reoriented, scaled, or otherwise modified under an authorized process.

The agent can inspect or automate model repair.

Possible workflow:

Original: part.stl

Repaired: part_repaired.stl

The original source should not be overwritten automatically.

Python-side geometry tooling can include approved libraries such as:

trimesh numpy Mesh-Processing Libraries External Mesh Utilities

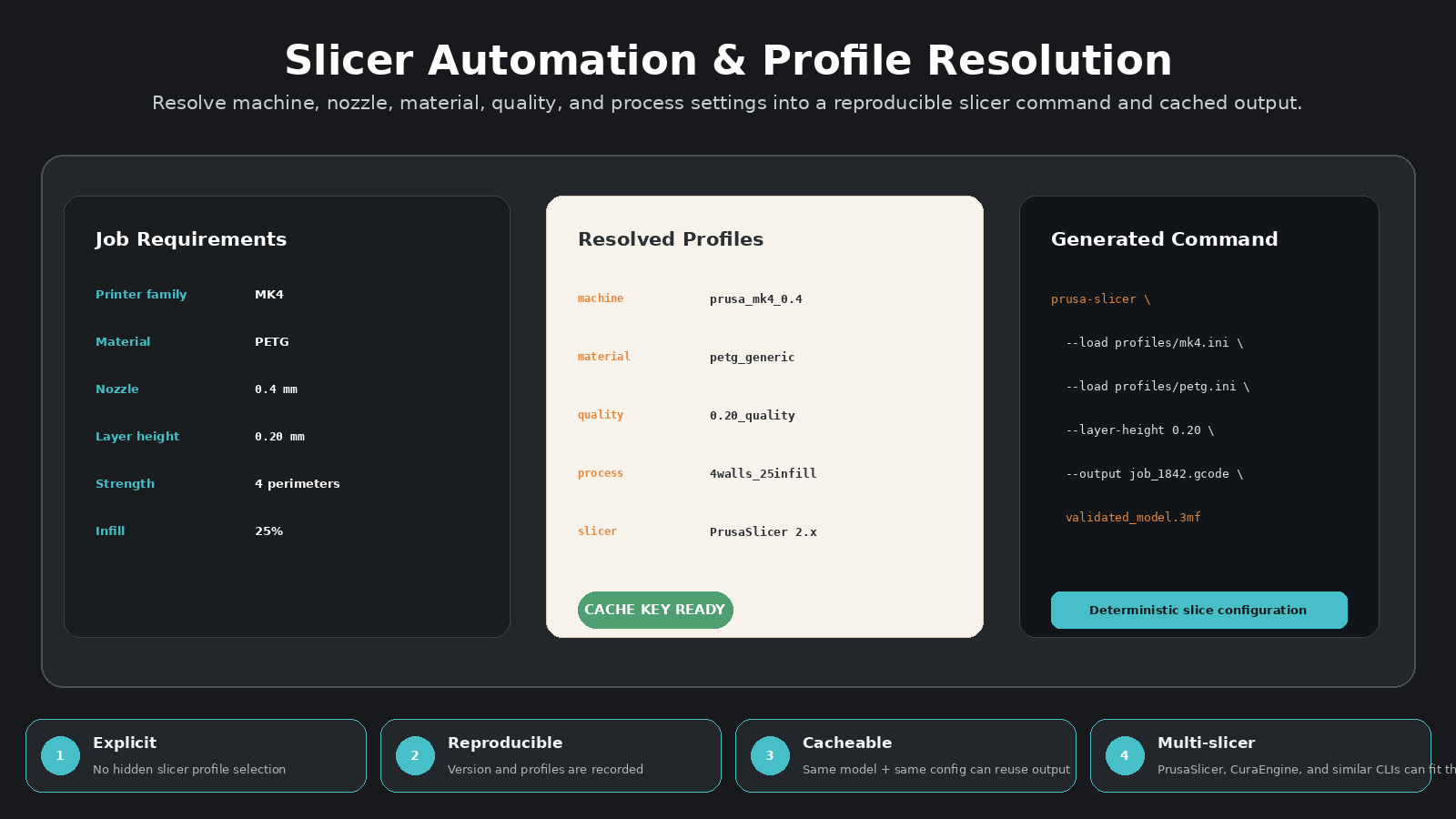

The agent can design slicer automation around:

PrusaSlicer CuraEngine SuperSlicer-Compatible Workflows OrcaSlicer-Related CLI Workflows Where Supported Other Command-Line Slicers

Exact command-line flags must be verified against the installed slicer version before production deployment.

The slicing architecture separates:

Model Printer Profile Material Profile Print Profile Slicer Version

This makes jobs reproducible.

Example profile architecture:

Printer Profile: voron_24_04mm_v3

Material Profile: pla_generic_v5

Print Profile: quality_020_v7

Profiles should be:

Versioned Traceable Approved Immutable for Production Use

The agent can maintain profile lifecycle states:

DRAFT

TESTING

APPROVED

DEPRECATED

Only APPROVED profiles should normally be used for production jobs.

The agent can generate a complete profile-promotion workflow:

Profile Change → Calibration Print → QA → Approval → Production Promotion

Every production job should record:

Slicer Name Slicer Version Printer Profile Version Material Profile Version Print Profile Version

This protects against silent configuration drift.

The agent can design safe slicer invocation in Python.

External processes should be called using structured argument arrays rather than unsafe string concatenation.

The architecture can use subprocess execution with:

Exit-Code Validation Timeout Captured Output Captured Errors Output-File Verification

Slicer failures can be normalized as:

INPUT_INVALID

PROFILE_MISSING

SLICER_NOT_FOUND

SLICER_TIMEOUT

SLICER_ERROR

OUTPUT_MISSING

GCODE_INVALID

UNSUPPORTED_CONFIGURATION

The agent can design slice caching.

A cache key may include:

Source Model Hash Slicer Version Printer Profile Version Material Profile Version Print Profile Version Override Hash

This means identical validated configurations do not need to be sliced repeatedly.

However, cached G-code should only be reused if:

Model Identity Matches Profile Versions Match Slicer Version Matches Machine Compatibility Matches Authorization Remains Valid

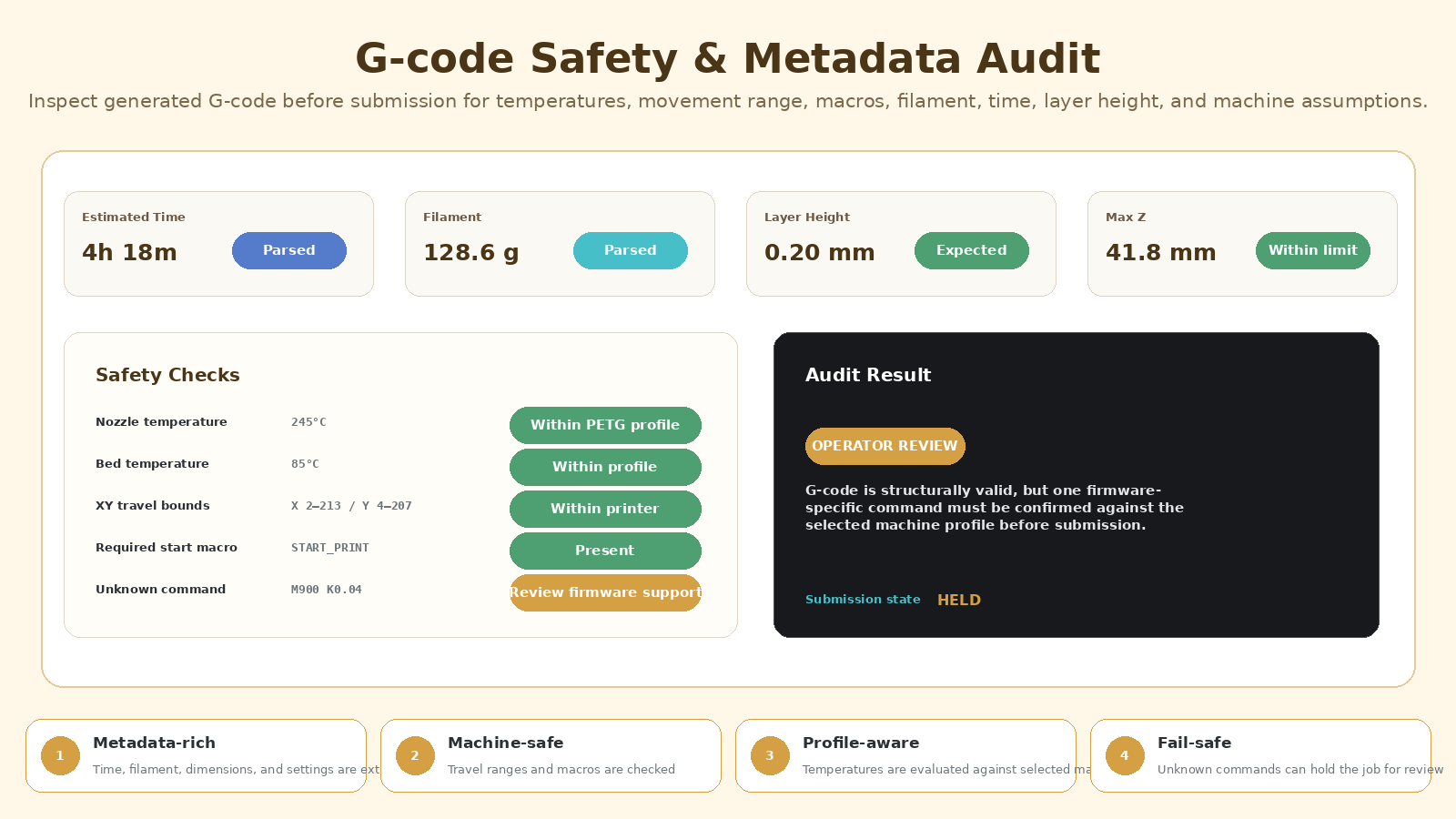

The agent performs G-code preflight before physical submission.

Checks can include:

File Exists File Is Non-Empty Expected Printer Expected Slicer Metadata Build Bounds Maximum X Maximum Y Maximum Z Nozzle Temperature Bed Temperature Layer Height Filament Usage Estimated Print Time Tool Count Extruder Usage Start Sequence End Sequence Unexpected Commands Machine-Specific Macros

The agent treats G-code as machine-specific.

G-code produced for one printer should not automatically be assumed compatible with another.

Differences can include:

Build Volume Firmware Printer Macros Coordinate System Toolhead Geometry Nozzle Diameter Temperature Limits Acceleration Limits Bed Mesh Extruder Count Start / End Procedures

Temperature validation is treated as a machine-safety gate.

If requested nozzle or bed temperature exceeds the approved machine limits:

BLOCK

The automation must never bypass:

Firmware Thermal Runaway Protection Manufacturer Temperature Limits Hardware Safety Controls

The agent can maintain a printer capability model.

Each printer record may contain:

Printer ID Model Firmware API Type Build X Build Y Build Z Extruder Count Nozzle Diameter Approved Materials Maximum Nozzle Temperature Maximum Bed Temperature Enclosure Heated Chamber Camera Maintenance State Connection State

Printer states can be normalized as:

OFFLINE

IDLE

PREPARING

PRINTING

PAUSED

COMPLETE

ERROR

MAINTENANCE

UNKNOWN

A critical rule is:

UNKNOWN IS NOT IDLE

If the automation cannot establish printer state, it should not submit another job.

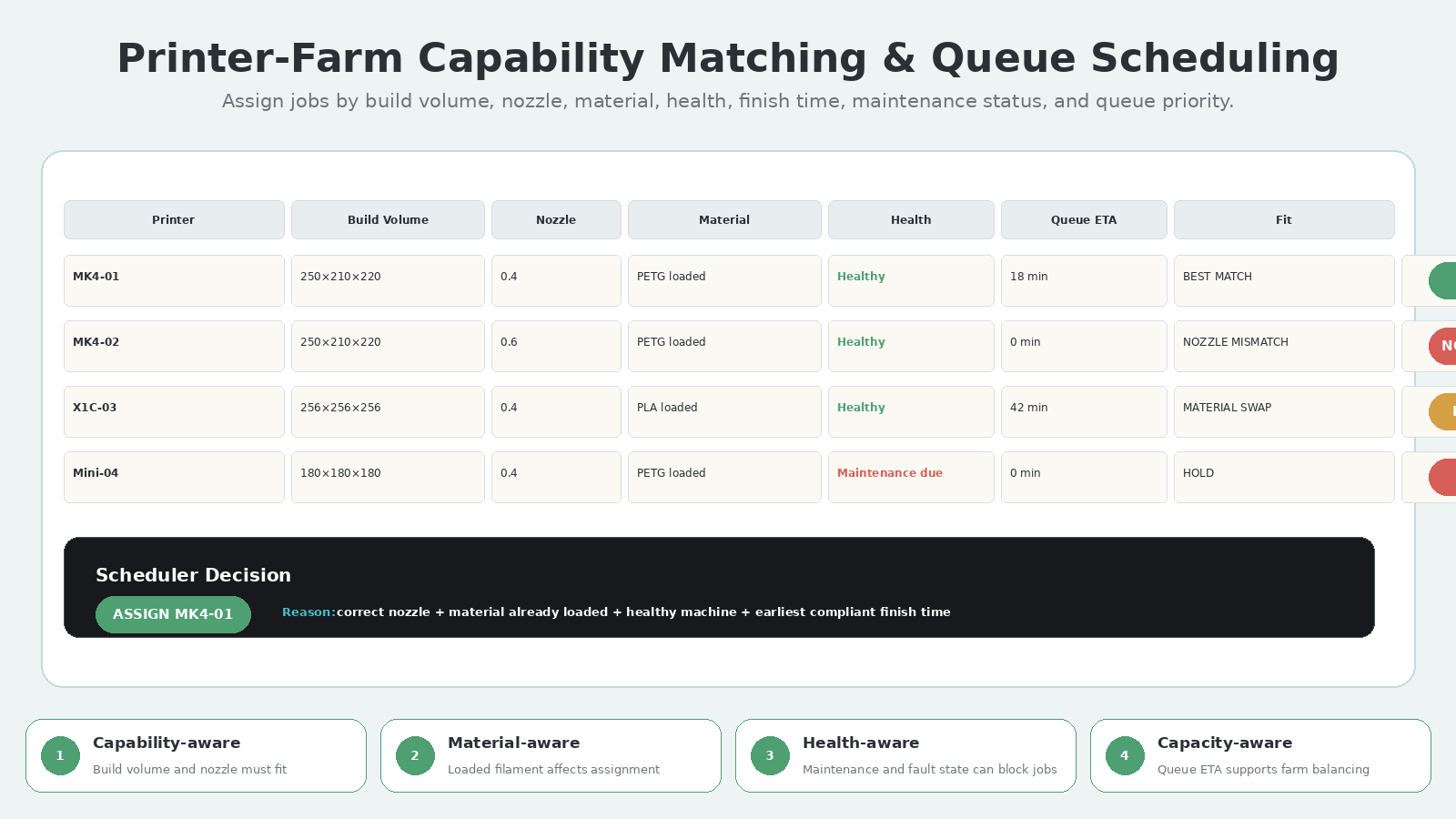

The agent can build intelligent printer matching.

A print job may require:

Minimum Build Volume Specific Material Specific Nozzle Enclosure Heated Chamber Printer Quality Level Firmware Capability Validated Profile

Only compatible printers should become scheduling candidates.

Example:

Job:

Material:

ABS

Required Nozzle: 0.4 mm

Enclosure: Required

Printer A: Open frame

Result:

NOT ELIGIBLE

Printer B: Enclosed 0.4 mm nozzle Validated ABS profile

Result:

ELIGIBLE

The agent can design print-farm schedulers.

Scheduling inputs may include:

Priority Due Date Estimated Duration Printer Availability Material Color Nozzle Maintenance Status Current Queue Machine Eligibility Operator Constraints

Possible scheduling objectives include:

Earliest Due Date Shortest Completion Time Printer Utilization Material Grouping Color Grouping Reduced Changeovers Maintenance Balancing

The agent never optimizes utilization at the expense of machine compatibility.

Queue states can include:

CREATED

PREFLIGHT

READY_TO_SLICE

SLICING

SLICE_FAILED

READY_FOR_APPROVAL

APPROVED

QUEUED

SUBMITTING

SUBMITTED

PRINTING

PAUSED

COMPLETE

FAILED

CANCELLED

REQUIRES_REVIEW

A production job can follow:

CREATED

→ PREFLIGHT

→ SLICING

→ READY_FOR_APPROVAL

→ APPROVED

→ QUEUED

→ SUBMITTING

→ PRINTING

→ COMPLETE

→ QA

Alternative paths include:

PREFLIGHT

→ REQUIRES_REVIEW

SLICING

→ SLICE_FAILED

SUBMITTING

→ UNKNOWN_SUBMISSION

→ RECONCILIATION

PRINTING

→ FAILED

The agent handles duplicate-print protection.

A dangerous scenario is:

Python sends a print-start request.

The printer receives it.

The network response is lost.

The middleware sees a timeout.

A weak implementation may immediately send another print-start command.

This can create duplicate work or state confusion.

The correct architecture is:

Mark:

SUBMISSION_UNKNOWN

Then:

Query Printer Check Active Job Check Active File Check Printer State Reconcile

Only after the system establishes the real machine state should any resubmission be considered.

This principle is similar to idempotent order processing in distributed systems.

The skill supports OctoPrint architecture.

Possible normalized operations include:

Health Check Connection State File Upload File Selection Print Start Pause Cancel Job Status Temperatures Progress

Current OctoPrint endpoints, authentication, and payload formats should be verified against official documentation before production use.

The skill supports Klipper / Moonraker architecture.

Possible operations include:

Printer State G-code File Management Print Start Pause Cancel Temperature Monitoring Macros Job Metadata Webcam Integration

Current Moonraker behavior should be verified against the installed version.

The agent can define a generic printer-adapter interface.

Possible methods:

health_check get_state upload_file start_print pause_print cancel_print get_job get_temperatures get_progress list_files delete_file get_capabilities

Each adapter should declare capabilities such as:

Supports Upload Supports Start Supports Pause Supports Cancel Supports Progress Supports Temperature Supports Camera Supports Event Stream Supports Macros Supports File Delete

Unknown capabilities should not be assumed.

The agent keeps:

Code Configuration Secrets

separate.

Printer API tokens should not be stored in:

Source Code G-code Model Files Logs Public Configuration

Configuration can be stored in:

YAML

JSON

TOML

Database Records

Sensitive credentials should use a suitable secrets mechanism.

The agent validates configuration during startup.

The automation should fail fast when critical configuration is invalid.

Examples:

Missing Printer URL Unknown Machine ID Invalid Build Volume Missing Profile Unknown Material Rule Missing Printer Adapter

The skill supports:

DRY RUN

and:

SIMULATION

Dry Run can:

Validate Model Resolve Printer Generate Slicer Command Slice Audit G-code Calculate Cost Calculate Material Stop Before Physical Submission

Simulation can use fake printer adapters to test:

Scheduling Queue State Retries Restart Recovery Failure Handling Notifications

Physical printing should be treated as an explicit operational mode.

Possible requirements before physical submission:

Printer Registered Printer Healthy Correct Profile Material Confirmed G-code Validated Approval Present Monitoring Healthy Machine Safety Controls Available

The agent can design operator-approval gates.

Approval can be required for:

New Model New Material New Profile New Printer Profile Long Print High-Temperature Print Overnight Print Large Batch Safety-Sensitive Part

Approval records may include:

Approval ID Job ID Operator Timestamp Profile Versions G-code Hash

Approval should bind to the exact G-code.

If the G-code changes:

Approval should expire.

Material automation is a major capability.

A material profile can contain:

Material Brand Color Density Nozzle Temperature Range Bed Temperature Range Enclosure Requirement Drying Requirement Cost per Kilogram Spool ID

The agent can estimate filament mass from length and density where sufficient data exists.

Material cost can be calculated from:

Filament Mass Spool Cost

Machine cost can optionally use:

Estimated Print Hours Configured Machine-Hour Rate

Energy estimation can use:

Average Power Duration Electricity Rate

These values should be labeled as estimates.

The agent can manage spool inventory.

A spool record may contain:

Spool ID Material Brand Color Initial Weight Remaining Weight Reserved Weight Printer Assignment

Before queueing a job:

Reserve Expected Filament + Configured Safety Margin

If remaining filament is insufficient:

MATERIAL_UNAVAILABLE

The agent can release reservations after:

Cancellation Failed Slice Reassignment

After successful printing, estimated usage can be replaced with actual usage when available.

The agent can detect nozzle mismatch.

Example:

G-code Profile: 0.4 mm

Printer: 0.6 mm

Result:

NOZZLE_MISMATCH

unless the profile explicitly supports that machine configuration.

The agent can automate maintenance tracking.

Possible counters:

Print Hours Print Count Filament Throughput Nozzle Hours Belt Inspection Lubrication Filter Replacement Enclosure Inspection

Maintenance states:

OK

DUE_SOON

DUE

BLOCKED

If maintenance is BLOCKED:

Do Not Schedule New Production Jobs

The skill supports health monitoring.

Possible checks:

Printer Online Firmware Responsive No Active Fault Temperatures Plausible Storage Available Queue Service Healthy Maintenance Allowed

Temperature sensor values should be sanity checked.

An implausible sensor value may indicate a disconnected or failed sensor.

In that condition:

BLOCK NEW PRINT

REQUIRE REVIEW

The agent can monitor:

Print Progress Elapsed Time Remaining Estimate Nozzle Temperature Bed Temperature Printer State Current File Layer Pause State Errors Camera Snapshots

Event-driven updates can be used where supported.

Periodic reconciliation is still recommended because event streams can disconnect.

The agent can integrate webcams for:

Start Snapshot Periodic Snapshot Failure Snapshot Completion Image Time-Lapse

Camera-based failure detection can detect patterns such as:

Spaghetti Part Detachment Severe Warping Empty Build Plate Possible Nozzle Problems

Computer-vision results are probabilistic.

A medium-confidence visual anomaly should not automatically cancel a physical print unless operator policy explicitly authorizes that action.

Possible failure policies include:

ALERT ONLY

PAUSE

CANCEL

REQUIRE OPERATOR REVIEW

The exact response should be configured.

The automation should never imply that a webcam replaces:

Smoke Detection Fire Prevention Electrical Safety Physical Supervision Requirements

Physical emergency-stop controls must remain independent from software automation.

Network failures are handled carefully.

If communication is lost during an active print:

Do Not Assume the Printer Stopped

Many printers can continue independently.

After reconnect:

Query Printer Recover Active State Restore Monitoring Reconcile Job

The same principle applies to application restarts.

On Python worker restart:

Disable New Submissions → Load Incomplete Jobs → Query Printer State → Match Active Print → Reconcile → Restore Monitoring → Re-Enable Scheduler

Critical queue state should not exist only in process memory.

For small installations, the agent can recommend:

SQLite

For larger farms:

PostgreSQL or another transactional database

Typical tables include:

jobs models slices printers printer_capabilities materials spools job_events approvals maintenance notifications

The agent can use append-only event logging.

Possible lifecycle events:

JOB_CREATED

MODEL_VALIDATED

SLICE_STARTED

SLICE_COMPLETED

GCODE_VALIDATED

JOB_APPROVED

JOB_QUEUED

PRINTER_ASSIGNED

SUBMISSION_STARTED

PRINT_STARTED

PRINT_PAUSED

PRINT_RESUMED

PRINT_COMPLETED

PRINT_FAILED

JOB_CANCELLED

A production audit record can include:

Event ID Job ID Printer ID Part ID Revision Model Hash G-code Hash Slicer Slicer Version Profile Versions Material Spool ID Action Status Timestamp Operator Reason Software Version

Structured logs are preferred.

Sensitive API credentials must be redacted.

The agent can maintain one correlation ID across:

Model Intake Slicing Queue Printer Assignment Physical Print QA

Notifications can be integrated with authorized systems such as:

Email Slack Discord Telegram Push Notifications Desktop Notifications

Useful notification events include:

Job Ready for Approval Print Started Print Completed Print Failed Printer Offline Low Spool Maintenance Due Queue Blocked

Notification systems should use:

Severity Debounce Grouping Cooldown

to avoid excessive alerts.

Retry architecture distinguishes safer operations from physical control operations.

Safer retries may include:

Status Query Metadata Query Database Query Camera Snapshot

Potentially unsafe retries include:

Start Print Cancel Print Execute Macro Change Heater State Delete File

These require explicit state and reconciliation.

Retries must be bounded.

Possible configuration:

Maximum Attempts Timeout Backoff Jitter Retryable Errors

The skill can design circuit breakers.

When a printer API repeatedly fails:

OPEN CIRCUIT

BLOCK NEW JOBS

KEEP QUEUE

NOTIFY OPERATOR

Circuit states:

CLOSED

OPEN

HALF_OPEN

The agent can prevent multi-worker scheduling conflicts.

Possible controls include:

Database Transactions Row Locks Advisory Locks Leader Process Job Reservations

A reservation record can contain:

Reservation ID Job ID Printer ID Expiration Status

If the reservation expires before submission:

Release or Reconcile

The agent supports priority scheduling.

Possible priorities:

CRITICAL

HIGH

NORMAL

LOW

The scheduler should avoid starvation.

It can also use due-date-aware scheduling.

Batch printing can track:

Plate Part IDs Quantity Expected Output Count

If one plate fails, both:

Batch-Level Impact

and:

Part-Level Impact

should be recorded.

Automatic part nesting can be supported, but spacing, cooling, adhesion, collision, and toolhead clearance matter.

Sequential printing should never be enabled automatically unless machine-clearance constraints have been validated.

The skill understands that orientation affects mechanical properties.

For functional parts, orientation can change:

Layer Adhesion Tensile Strength Bending Resistance Impact Resistance Surface Quality Support Requirements

The agent should not optimize orientation only for fastest printing.

Dimensional-compensation settings can also be versioned.

Examples:

Shrink Compensation Elephant-Foot Compensation Hole Compensation XY Compensation

The agent can automate calibration workflows.

Possible tests:

Calibration Cube Temperature Tower Flow Test Pressure Advance Resonance Test

Automatic acceptance criteria should come from user-defined QA policy.

Calibration results can be stored by:

Printer Material Nozzle Test Type Result Approved Setting Date

The agent separates:

PRINT COMPLETE

from:

QA PASS

A printer reporting completion means the machine finished the job.

It does not guarantee:

Dimensional Accuracy Surface Quality Mechanical Integrity Correct Material Correct Quantity

QA states can include:

PASS

FAIL

REWORK

REVIEW

Post-processing workflows can be added for:

Support Removal Washing Curing Sanding Annealing Painting Assembly Inspection Packing

The agent can adapt architecture for:

FDM / FFF

SLA / MSLA

Resin Industrial Additive Systems

Resin workflows require additional consideration for:

PPE

Ventilation Exposure Wash Cure Waste Handling

The agent should not apply FDM assumptions blindly to resin systems.

Industrial or proprietary printers may expose vendor-specific APIs or workflow constraints.

The preferred integration order is:

Official API Official SDK Supported File Workflow Operator-Assisted Process

The agent should not reverse-engineer protected private interfaces without authorization.

A simple local workflow can use folder watching:

incoming/ → Python detects file → waits for file completion → validates → slices → moves result to ready/

The agent must detect incomplete file writes.

Possible techniques:

Stable File Size Atomic Rename .partial Suffix

A half-written STL should not be processed.

Possible folder lifecycle:

incoming/ validated/ sliced/ ready/ printing/ complete/ failed/ archive/

The agent can use atomic filesystem moves for state transitions where appropriate.

Naming conventions can include:

Job ID Part ID Revision Material Profile

Sensitive customer information should not be unnecessarily embedded in filenames.

Path traversal must be prevented.

Untrusted filenames should not escape the configured workspace.

The agent can implement storage guards.

Before slicing:

Check Local Disk Space

Before uploading:

Check Printer Storage

Old printer files should only be removed using an explicit retention policy.

The agent can expose system health.

Possible health indicators:

service_alive database_ok slicer_ok printer_adapters scheduler_ok

It distinguishes:

SERVICE ALIVE

from:

READY FOR PHYSICAL PRINT

A worker can be running while printer state is unsafe.

Print-farm operational metrics can include:

Jobs Created Jobs Completed Jobs Failed Slice Failures G-code Rejections Printer Offline Events Printer Errors Queue Depth Average Wait Time Printer Utilization Filament Used Maintenance Due

Printer reliability metrics can include:

Success Rate Failure Rate Average Job Duration Utilization Maintenance Frequency Mean Time Between Failures

Failure attribution can classify:

MODEL

SLICING

MATERIAL

PRINTER

ADHESION

OPERATOR

NETWORK

API

UNKNOWN

The agent does not automatically assume "printer failure" whenever a job fails.

For multi-customer farms, architecture can isolate:

Customers Jobs Files Permissions Billing Audit Trails

The skill includes security controls such as:

Authentication Authorization Least Privilege API Token Protection Network Segmentation Safe File Handling Path Validation Log Redaction

Printer controllers should generally not be directly exposed to the public internet without appropriate protection.

Possible secure architectures include:

Private Network

VPN

Authenticated Reverse Proxy Controlled Gateway

The agent can design:

Web Dashboards REST Services CLI Tools Background Workers Schedulers Monitoring Services

Possible CLI commands:

jobs list jobs submit jobs approve jobs cancel printers status printers reconcile spools list maintenance due

Python concurrency can use:

asyncio Thread Pools Process Pools Task Queues

depending on workload.

Network I/O is a good fit for asynchronous processing.

Slicer processes and heavy geometry work should not block an asynchronous event loop.

The agent can create domain-specific exception categories such as:

ModelValidationError SlicerError GCodeValidationError PrinterUnavailableError SubmissionUnknownError MaterialUnavailableError ApprovalRequiredError

It also supports a detailed error taxonomy:

P3D-001 MODEL_UNREADABLE

P3D-002 MODEL_EMPTY

P3D-003 UNIT_AMBIGUITY

P3D-004 MODEL_OUT_OF_BOUNDS

P3D-005 MESH_INVALID

P3D-006 PROFILE_MISSING

P3D-007 PROFILE_NOT_APPROVED

P3D-008 SLICER_NOT_FOUND

P3D-009 SLICER_TIMEOUT

P3D-010 SLICER_ERROR

P3D-011 GCODE_INVALID

P3D-012 GCODE_OUT_OF_BOUNDS

P3D-013 TEMPERATURE_POLICY

P3D-014 PRINTER_INCOMPATIBLE

P3D-015 PRINTER_OFFLINE

P3D-016 PRINTER_STATE_UNKNOWN

P3D-017 MATERIAL_UNAVAILABLE

P3D-018 NOZZLE_MISMATCH

P3D-019 MAINTENANCE_BLOCK

P3D-020 APPROVAL_REQUIRED

P3D-021 SUBMISSION_UNKNOWN

P3D-022 PRINT_FAILED

P3D-023 PRINTER_API_ERROR

P3D-024 STORAGE_LOW

P3D-025 DUPLICATE_JOB

P3D-026 CONFIG_INVALID

P3D-027 FILE_INCOMPLETE

P3D-028 CAMERA_UNAVAILABLE

P3D-029 QUEUE_CONFLICT

P3D-030 INTERNAL_ERROR

Testing can include:

Unit Tests Integration Tests Simulation Failure Injection Physical Validation

Important failure scenarios include:

Printer Offline API Timeout Slicer Timeout Malformed Model Full Disk Failed Upload Lost Start Response Worker Restart Spool Shortage Maintenance Block Wrong Nozzle Wrong Material Out-of-Bounds G-code Excess Temperature Unknown Printer State

A strong duplicate-start test should verify:

Same Job ID Same Model Same Configuration

does not produce multiple physical job starts.

A restart test should verify that an active physical print is discovered and monitored rather than restarted.

The agent can design a global submission kill switch, per-printer stop, and scheduler pause.

The software kill switch should generally:

Block New Print Starts Keep Monitoring Active Allow Status Queries Preserve Current Job State

Active prints should not automatically be cancelled unless the operator's policy explicitly requires it.

Physical emergency-stop mechanisms remain independent.

The skill can build complete production traceability.

For each printed part:

Part ID Revision Printer Material Spool G-code Hash Profile Versions Start Time Finish Time Operator QA Result

can be recorded.

Reprints should also be controlled.

Recommended workflow:

Failure → Review → Root Cause → Reprint Authorization

Automatic reprint loops must be bounded.

Long or overnight prints may require additional operator-defined controls such as:

Approved Printer Material Sufficiency Maintenance Health Monitoring Camera Remote Notifications Physical Safety Procedures

The skill supports gradual rollout.

Recommended migration for an existing manual print farm:

Phase 1: Read-Only Monitoring

Phase 2: Automated Slicing

Phase 3: Automated Queue Recommendations

Phase 4: Operator-Approved Submission

Phase 5: Controlled Automatic Submission

Recommended production progression:

Simulation → Dry Run → Single Printer → Operator Approval → Limited Farm → Full Farm

This staged deployment reduces automation risk while preserving traceability and operator control.
