Premium Offline QR Code Studio: Zero Dependencies

I'll build an offline QR studio for your guest Wi-Fi with the highest error correction level (H), starting by checking for the bundled template.

The template isn't in this workspace, so I'll use the skill's fallback: a self-contained HTML studio with an inline encoder. I'll also verify it by decoding the output.

The Wi-Fi code decodes correctly. Three large synthetic test codes failed, so I'll check whether that's my encoder or the decoder being picky.

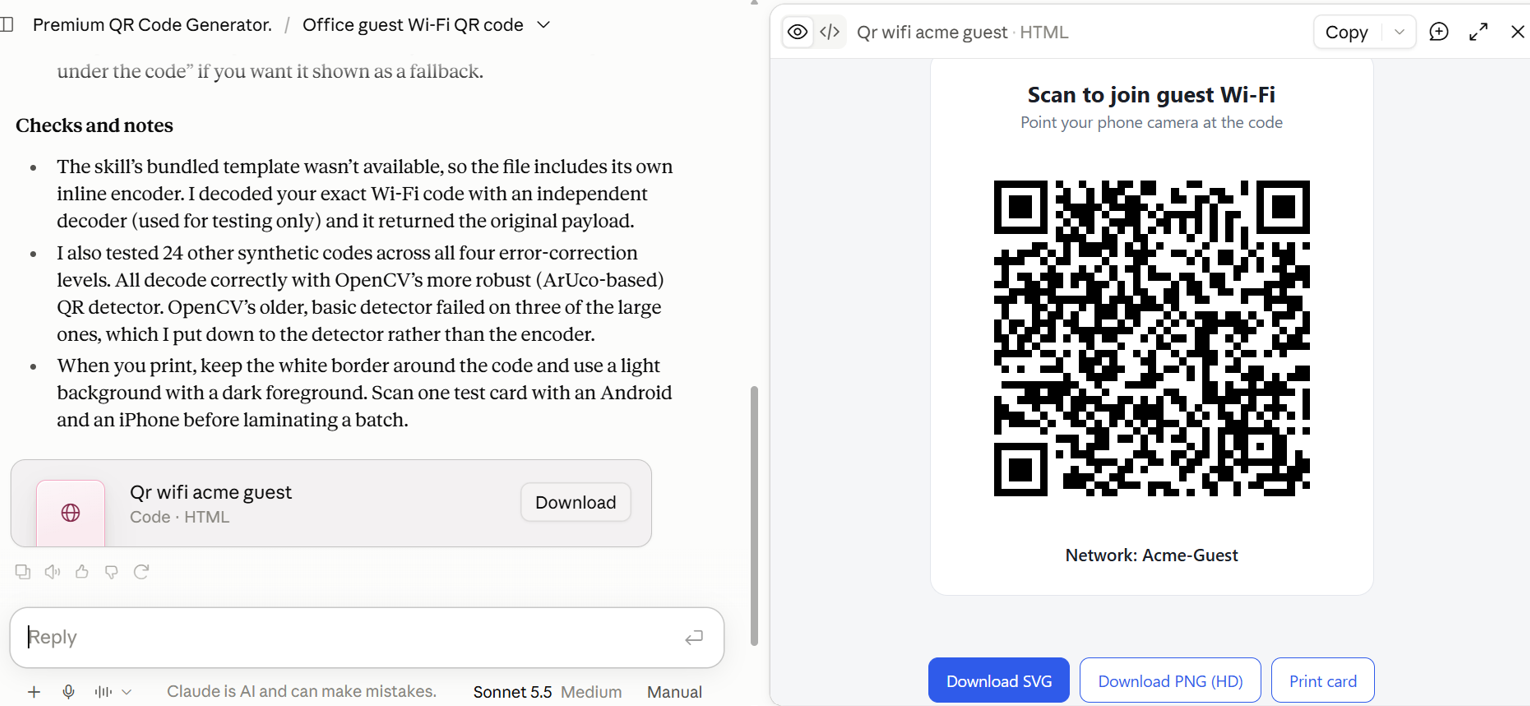

Your QR studio is ready: qr-wifi-acme-guest.html opens in any browser, works fully offline, and loads nothing external.

Payload encoded
WIFI:T:WPA;S:Acme-Guest;P:Welcome2026!;H:false;;
WPA2 uses the standard WPA type. The network is marked visible (H:false).

Error correction: H (30%)
This is the strongest level. It still scans with up to roughly 30% of the code damaged, which suits scratches and lamination glare. The code comes out small (version 6, 41×41 modules), so the modules stay large on a desk card.

Using the file

• It opens already filled in with your network, with a ready-to-print card. Edit the fields to change anything.

Download SVG gives a vector file for print shops.

Download PNG (HD) gives a high-resolution image.

Print card prints just the card.

• The password is not printed on the card by default. Tick "Print password under the code" if you want it shown as a fallback.

Checks and notes

• The skill's bundled template wasn't available, so the file includes its own inline encoder. I decoded your exact Wi-Fi code with an independent decoder (used for testing only) and it returned the original payload.
• I also tested 24 other synthetic codes across all four error-correction levels. All decode correctly with OpenCV's more robust (ArUco-based) QR detector. OpenCV's older, basic detector failed on three of the large ones, which I put down to the detector rather than the encoder.
• When you print, keep the white border around the code and use a light background with a dark foreground. Scan one test card with an Android and an iPhone before laminating a batch.

<!DOCTYPE html>

<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width,initial-scale=1">

<title>QR Studio - Acme-Guest Wi-Fi</title>

<style>
  :root{--bg:#f5f6f8;--panel:#fff;--ink:#1b1f27;--muted:#667085;--line:#e3e6ec;--accent:#2f5bea}
  *{box-sizing:border-box}
  body{margin:0;font-family:system-ui,-apple-system,"Segoe UI",Roboto,sans-serif;background:var(--bg);color:var(--ink)}
  header{padding:20px 24px 0}
  header h1{margin:0;font-size:20px}
  header p{margin:4px 0 0;color:var(--muted);font-size:13px}
  main{display:grid;grid-template-columns:minmax(280px,380px) 1fr;gap:20px;padding:20px 24px 32px;max-width:1000px;margin:0 auto}
  @media(max-width:760px){main{grid-template-columns:1fr}}
  .panel{background:var(--panel);border:1px solid var(--line);border-radius:12px;padding:18px}
  label{display:block;font-size:12px;font-weight:600;color:var(--muted);margin:12px 0 4px}
  label:first-child{margin-top:0}
  input[type=text],input[type=password],select,textarea{width:100%;padding:9px 10px;border:1px solid var(--line);border-radius:8px;font:inherit;font-size:14px;background:#fff;color:var(--ink)}
  textarea{min-height:90px;font-family:ui-monospace,Menlo,Consolas,monospace;font-size:12px}
  .row{display:flex;gap:10px}.row>*{flex:1}
  .check{display:flex;align-items:center;gap:8px;margin-top:12px;font-size:13px;color:var(--ink);font-weight:500}
  .tabs{display:flex;gap:6px;margin-bottom:14px}
  .tabs button{flex:1;padding:8px;border:1px solid var(--line);background:#fff;border-radius:8px;cursor:pointer;font:inherit;font-size:13px}
  .tabs button.on{background:var(--accent);border-color:var(--accent);color:#fff}
  .stage{display:flex;flex-direction:column;align-items:center;gap:16px}
  #card{background:#fff;border:1px solid var(--line);border-radius:14px;padding:22px 26px;width:100%;max-width:360px;text-align:center}
  #card .title{font-size:18px;font-weight:700;margin-bottom:2px}
  #card .sub{font-size:13px;color:var(--muted);margin-bottom:14px}
  #qr svg{width:100%;height:auto;display:block}
  #card .net{margin-top:12px;font-size:14px;font-weight:600}
  #card .pw{margin-top:2px;font-size:13px;font-family:ui-monospace,Menlo,Consolas,monospace}
  .actions{display:flex;flex-wrap:wrap;gap:8px;justify-content:center}
  .actions button{padding:9px 14px;border-radius:8px;border:1px solid var(--accent);background:var(--accent);color:#fff;font:inherit;font-size:13px;cursor:pointer}
  .actions button.alt{background:#fff;color:var(--accent)}
  #meta{font-size:12px;color:var(--muted);text-align:center}
  #err{color:#b42318;font-size:13px;text-align:center;min-height:18px}
  @media print{
    body{background:#fff}header,.panel,.actions,#meta,#err{display:none!important}
    main{display:block;padding:0}.stage{display:block}
    #card{border:1px dashed #999;margin:0 auto;max-width:6.5cm;padding:.4cm}
  }
</style>
</head>
<body>
<header>
  <h1>QR Code Studio</h1>

<p>Runs entirely in your browser. Nothing is uploaded or sent anywhere.</p>

</header>
<main>
  <section class="panel">
    <div class="tabs">
      <button id="tabWifi" class="on" type="button">Wi-Fi</button>
      <button id="tabRaw" type="button">Custom text</button>
    </div>
    <div id="wifiForm">
      <label for="ssid">Network name (SSID)</label>
      <input type="text" id="ssid" value="Acme-Guest" autocomplete="off">
      <label for="pw">Password</label>
      <input type="text" id="pw" value="Welcome2026!" autocomplete="off">
      <label for="sec">Security</label>
      <select id="sec">
        <option value="WPA" selected>WPA / WPA2 / WPA3</option>
        <option value="WEP">WEP</option>
        <option value="nopass">None (open)</option>
      </select>
      <div class="check"><input type="checkbox" id="hidden"><span>Hidden network</span></div>
    </div>
    <div id="rawForm" style="display:none">
      <label for="raw">Text or URL to encode</label>
      <textarea id="raw">https://</textarea>
    </div>
    <label for="ecl">Error correction</label>
    <select id="ecl">
      <option value="L">L - 7%</option>
      <option value="M">M - 15%</option>
      <option value="Q">Q - 25%</option>
      <option value="H" selected>H - 30% (best for print / lamination)</option>
    </select>
    <div class="row">
      <div><label for="fg">Foreground</label><input type="text" id="fg" value="#000000"></div>
      <div><label for="bg">Background</label><input type="text" id="bg" value="#ffffff"></div>
    </div>
    <div class="check"><input type="checkbox" id="showpw"><span>Print password under the code</span></div>
    <label for="cardTitle">Card heading</label>
    <input type="text" id="cardTitle" value="Scan to join guest Wi-Fi">
  </section>

  <section class="stage">
    <div id="card">
      <div class="title" id="cTitle"></div>
      <div class="sub">Point your phone camera at the code</div>
      <div id="qr"></div>
      <div class="net" id="cNet"></div>
      <div class="pw" id="cPw"></div>
    </div>
    <div id="err"></div>
    <div class="actions">
      <button type="button" id="dlSvg">Download SVG</button>
      <button type="button" id="dlPng" class="alt">Download PNG (HD)</button>
      <button type="button" id="print" class="alt">Print card</button>
    </div>
    <div id="meta"></div>
  </section>
</main>

<script id="qr-core">

/* Minimal QR Code encoder (byte mode, versions 1-40, ECC L/M/Q/H). Zero dependencies. */

var QR=(function(){
'use strict';
var ECC_CW=[
[-1,7,10,15,20,26,18,20,24,30,18,20,24,26,30,22,24,28,30,28,28,28,28,30,30,26,28,30,30,30,30,30,30,30,30,30,30,30,30,30,30],
[-1,10,16,26,18,24,16,18,22,22,26,30,22,22,24,24,28,28,26,26,26,26,28,28,28,28,28,28,28,28,28,28,28,28,28,28,28,28,28,28,28],
[-1,13,22,18,26,18,24,18,22,20,24,28,26,24,20,30,24,28,28,26,30,28,30,30,30,30,28,30,30,30,30,30,30,30,30,30,30,30,30,30,30],
[-1,17,28,22,16,22,28,26,26,24,28,24,28,22,24,24,30,28,28,26,28,30,24,30,30,30,30,30,30,30,30,30,30,30,30,30,30,30,30,30,30]];
var NUM_BLK=[
[-1,1,1,1,1,1,2,2,2,2,4,4,4,4,4,6,6,6,6,7,8,8,9,9,10,12,12,12,13,14,15,16,17,18,19,19,20,21,22,24,25],
[-1,1,1,1,2,2,4,4,4,5,5,5,8,9,9,10,10,11,13,14,16,17,17,18,20,21,23,25,26,28,29,31,33,35,37,38,40,43,45,47,49],
[-1,1,1,2,2,4,4,6,6,8,8,8,10,12,16,12,17,16,18,21,20,23,23,25,27,29,34,34,35,38,40,43,45,48,51,53,56,59,62,65,68],
[-1,1,1,2,4,4,4,5,6,8,8,11,11,16,16,18,16,19,21,25,25,25,34,30,32,35,37,40,42,45,48,51,54,57,60,63,66,70,74,77,81]];
var ECL={L:{o:0,f:1},M:{o:1,f:0},Q:{o:2,f:3},H:{o:3,f:2}};

function rawModules(v){
  var r=(16*v+128)*v+64;
  if(v>=2){var n=Math.floor(v/7)+2;r-=(25*n-10)*n-55;if(v>=7)r-=36;}
  return r;
}
function dataCw(v,e){return Math.floor(rawModules(v)/8)-ECC_CW[e][v]*NUM_BLK[e][v];}
function mul(x,y){var z=0;for(var i=7;i>=0;i--){z=(z<<1)^((z>>>7)*0x11D);z^=((y>>>i)&1)*x;}return z;}
function divisor(d){
  var r=[],i,j;for(i=0;i<d-1;i++)r.push(0);r.push(1);
  var root=1;
  for(i=0;i<d;i++){for(j=0;j<d;j++){r[j]=mul(r[j],root);if(j+1<d)r[j]^=r[j+1];}root=mul(root,2);}
  return r;
}
function remainder(data,div){
  var r=div.map(function(){return 0;});
  data.forEach(function(b){
    var f=b^r.shift();r.push(0);
    div.forEach(function(c,i){r[i]^=mul(c,f);});
  });
  return r;
}
function bit(x,i){return((x>>>i)&1)!==0;}

function encode(text,eclName){
  var e=ECL[eclName].o,bytes=Array.prototype.slice.call(new TextEncoder().encode(text));
  var ver,cc;
  for(ver=1;;ver++){
    if(ver>40)throw new Error('Text is too long for a QR code at this error-correction level.');
    cc=ver<=9?8:16;
    if(bytes.length>=(1<<cc))continue;
    if(4+cc+8*bytes.length<=dataCw(ver,e)*8)break;
  }
  var bits=[];
  function push(v,n){for(var i=n-1;i>=0;i--)bits.push((v>>>i)&1);}
  push(4,4);push(bytes.length,cc);bytes.forEach(function(b){push(b,8);});
  var cap=dataCw(ver,e)*8;
  push(0,Math.min(4,cap-bits.length));
  push(0,(8-bits.length%8)%8);
  var dc=[],i;
  for(i=0;i<bits.length;i++){if(i%8===0)dc.push(0);dc[i>>>3]|=bits[i]<<(7-(i&7));}
  for(var pad=0xEC;dc.length<cap/8;pad^=0xEC^0x11)dc.push(pad);

/* ECC + interleave */

  var nb=NUM_BLK[e][ver],bel=ECC_CW[e][ver],raw=Math.floor(rawModules(ver)/8);
  var nShort=nb-raw%nb,shortLen=Math.floor(raw/nb),blocks=[],div=divisor(bel),k=0;
  for(i=0;i<nb;i++){
    var dat=dc.slice(k,k+shortLen-bel+(i<nShort?0:1));k+=dat.length;
    var ecc=remainder(dat,div);
    if(i<nShort)dat.push(0);
    blocks.push(dat.concat(ecc));
  }
  var all=[];
  for(i=0;i<blocks[0].length;i++){
    blocks.forEach(function(blk,j){if(i!==shortLen-bel||j>=nShort)all.push(blk[i]);});
  }

/* Matrix */

  var size=ver*4+17,mod=[],fn=[],y,x;
  for(y=0;y<size;y++){mod.push(new Array(size).fill(false));fn.push(new Array(size).fill(false));}
  function setFn(x,y,d){mod[y][x]=d;fn[y][x]=true;}
  function finder(cx,cy){
    for(var dy=-4;dy<=4;dy++)for(var dx=-4;dx<=4;dx++){
      var d=Math.max(Math.abs(dx),Math.abs(dy)),xx=cx+dx,yy=cy+dy;
      if(xx>=0&&xx<size&&yy>=0&&yy<size)setFn(xx,yy,d!==2&&d!==4);
    }
  }
  function align(cx,cy){
    for(var dy=-2;dy<=2;dy++)for(var dx=-2;dx<=2;dx++)setFn(cx+dx,cy+dy,Math.max(Math.abs(dx),Math.abs(dy))!==1);
  }
  function formatBits(mask){
    var data=(ECL[eclName].f<<3)|mask,rem=data,i;
    for(i=0;i<10;i++)rem=(rem<<1)^((rem>>>9)*0x537);
    var b=((data<<10)|rem)^0x5412;
    for(i=0;i<=5;i++)setFn(8,i,bit(b,i));
    setFn(8,7,bit(b,6));setFn(8,8,bit(b,7));setFn(7,8,bit(b,8));
    for(i=9;i<15;i++)setFn(14-i,8,bit(b,i));
    for(i=0;i<8;i++)setFn(size-1-i,8,bit(b,i));
    for(i=8;i<15;i++)setFn(8,size-15+i,bit(b,i));
    setFn(8,size-8,true);
  }
  for(i=0;i<size;i++){setFn(6,i,i%2===0);setFn(i,6,i%2===0);}
  finder(3,3);finder(size-4,3);finder(3,size-4);
  var pos=[];
  if(ver>1){
    var na=Math.floor(ver/7)+2,step=ver===32?26:Math.ceil((ver*4+4)/(na*2-2))*2;
    pos=[6];for(var p=size-7;pos.length<na;p-=step)pos.splice(1,0,p);
    for(i=0;i<na;i++)for(var j=0;j<na;j++){
      if((i===0&&j===0)||(i===0&&j===na-1)||(i===na-1&&j===0))continue;
      align(pos[i],pos[j]);
    }
  }
  formatBits(0);
  if(ver>=7){
    var rem=ver;for(i=0;i<12;i++)rem=(rem<<1)^((rem>>>11)*0x1F25);
    var vb=(ver<<12)|rem;
    for(i=0;i<18;i++){var c=bit(vb,i),a=size-11+i%3,b2=Math.floor(i/3);setFn(a,b2,c);setFn(b2,a,c);}
  }
  /* Codewords */
  var n=0;
  for(var right=size-1;right>=1;right-=2){
    if(right===6)right=5;
    for(var vert=0;vert<size;vert++)for(var jj=0;jj<2;jj++){
      x=right-jj;y=((right+1)&2)===0?size-1-vert:vert;
      if(!fn[y][x]&&n<all.length*8){mod[y][x]=bit(all[n>>>3],7-(n&7));n++;}
    }
  }
  function applyMask(m){
    for(y=0;y<size;y++)for(x=0;x<size;x++){
      var inv;
      switch(m){
        case 0:inv=(x+y)%2===0;break;
        case 1:inv=y%2===0;break;
        case 2:inv=x%3===0;break;
        case 3:inv=(x+y)%3===0;break;
        case 4:inv=(Math.floor(x/3)+Math.floor(y/2))%2===0;break;
        case 5:inv=x*y%2+x*y%3===0;break;
        case 6:inv=(x*y%2+x*y%3)%2===0;break;
        default:inv=((x+y)%2+x*y%3)%2===0;
      }
      if(!fn[y][x]&&inv)mod[y][x]=!mod[y][x];
    }
  }
  var P1=[1,0,1,1,1,0,1,0,0,0,0],P2=[0,0,0,0,1,0,1,1,1,0,1];
  function penalty(){
    var pen=0,r,c,t,line;
    function lineScore(get){
      var s=0,run=1,k2;
      for(k2=1;k2<size;k2++){
        if(get(k2)===get(k2-1))run++;else{if(run>=5)s+=run-2;run=1;}
      }
      if(run>=5)s+=run-2;
      for(k2=0;k2+11<=size;k2++){
        var m1=true,m2=true;
        for(var q=0;q<11;q++){var v=get(k2+q)?1:0;if(v!==P1[q])m1=false;if(v!==P2[q])m2=false;}
        if(m1)s+=40;if(m2)s+=40;
      }
      return s;
    }
    for(r=0;r<size;r++)pen+=lineScore(function(k2){return mod[r][k2];});
    for(c=0;c<size;c++)pen+=lineScore(function(k2){return mod[k2][c];});
    var dark=0;
    for(r=0;r<size;r++)for(c=0;c<size;c++){
      if(mod[r][c])dark++;
      if(r+1<size&&c+1<size&&mod[r][c]===mod[r][c+1]&&mod[r][c]===mod[r+1][c]&&mod[r][c]===mod[r+1][c+1])pen+=3;
    }
    var total=size*size;
    pen+=(Math.ceil(Math.abs(dark*20-total*10)/total)-1)*10;
    return pen;
  }
  var best=0,bestPen=Infinity;
  for(var m=0;m<8;m++){
    applyMask(m);formatBits(m);
    var pn=penalty();
    if(pn<bestPen){bestPen=pn;best=m;}
    applyMask(m);
  }
  applyMask(best);formatBits(best);
  return{size:size,version:ver,mask:best,modules:mod};
}
return{encode:encode};
})();
if(typeof module!=='undefined')module.exports=QR;
</script>

<script id="studio">
(function(){
  var $=function(id){return document.getElementById(id);};
  var mode='wifi',current=null;

  function esc(s){return s.replace(/([\\;,:"])/g,'\\$1');}
  function payload(){
    if(mode==='raw')return $('raw').value;
    var t=$('sec').value;
    return 'WIFI:T:'+t+';S:'+esc($('ssid').value)+';'+(t==='nopass'?'':'P:'+esc($('pw').value)+';')+'H:'+($('hidden').checked?'true':'false')+';;';
  }
  function cleanColor(v,fallback){return /^#[0-9a-fA-F]{3,8}$/.test(v.trim())?v.trim():fallback;}
  function svgString(qr,quiet,fg,bg){
    var n=qr.size+quiet*2,d=[],x,y;
    for(y=0;y<qr.size;y++)for(x=0;x<qr.size;x++)
      if(qr.modules[y][x])d.push('M'+(x+quiet)+','+(y+quiet)+'h1v1h-1z');
    return '<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 '+n+' '+n+'" shape-rendering="crispEdges">'+
      '<rect width="'+n+'" height="'+n+'" fill="'+bg+'"/><path d="'+d.join('')+'" fill="'+fg+'"/></svg>';
  }
  function render(){
    var text=payload(),ecl=$('ecl').value;
    $('err').textContent='';
    try{
      current=QR.encode(text,ecl);
    }catch(e){
      current=null;$('qr').innerHTML='';$('err').textContent=e.message;return;
    }
    var fg=cleanColor($('fg').value,'#000000'),bg=cleanColor($('bg').value,'#ffffff');
    $('qr').innerHTML=svgString(current,4,fg,bg);
    $('cTitle').textContent=$('cardTitle').value;
    $('cNet').textContent=mode==='wifi'?'Network: '+$('ssid').value:'';
    $('cPw').textContent=(mode==='wifi'&&$('showpw').checked&&$('sec').value!=='nopass')?'Password: '+$('pw').value:'';
    $('meta').textContent='Version '+current.version+' ('+current.size+'x'+current.size+' modules), error correction '+ecl+', mask '+current.mask;
  }
  function download(name,blob){
    var a=document.createElement('a');a.href=URL.createObjectURL(blob);a.download=name;
    document.body.appendChild(a);a.click();a.remove();
    setTimeout(function(){URL.revokeObjectURL(a.href);},1000);
  }
  $('dlSvg').onclick=function(){
    if(!current)return;
    var s=svgString(current,4,cleanColor($('fg').value,'#000000'),cleanColor($('bg').value,'#ffffff'));
    download('qr-code.svg',new Blob([s],{type:'image/svg+xml'}));
  };
  $('dlPng').onclick=function(){
    if(!current)return;
    var quiet=4,n=current.size+quiet*2,scale=Math.max(1,Math.floor(2400/n)),px=n*scale;
    var c=document.createElement('canvas');c.width=c.height=px;
    var g=c.getContext('2d');
    g.fillStyle=cleanColor($('bg').value,'#ffffff');g.fillRect(0,0,px,px);
    g.fillStyle=cleanColor($('fg').value,'#000000');
    for(var y=0;y<current.size;y++)for(var x=0;x<current.size;x++)
      if(current.modules[y][x])g.fillRect((x+quiet)*scale,(y+quiet)*scale,scale,scale);
    c.toBlob(function(b){download('qr-code.png',b);},'image/png');
  };
  $('print').onclick=function(){window.print();};
  function setMode(m){
    mode=m;
    $('tabWifi').className=m==='wifi'?'on':'';$('tabRaw').className=m==='raw'?'on':'';
    $('wifiForm').style.display=m==='wifi'?'':'none';$('rawForm').style.display=m==='raw'?'':'none';
    render();
  }
  $('tabWifi').onclick=function(){setMode('wifi');};
  $('tabRaw').onclick=function(){setMode('raw');};
  ['ssid','pw','sec','hidden','raw','ecl','fg','bg','showpw','cardTitle'].forEach(function(id){
    $(id).addEventListener('input',render);$(id).addEventListener('change',render);
  });
  render();
})();
</script>
</body>
</html>
