ERD: Engineering Requirements Document

Wrote the ERD with all phase gates approved by user instruction. Document validation passed all 13 checks.

Files written

• ./saved-search-alerts-erd.md
• ./validate-erd.py
• ./saved-search-alerts-erd-validation.json

---

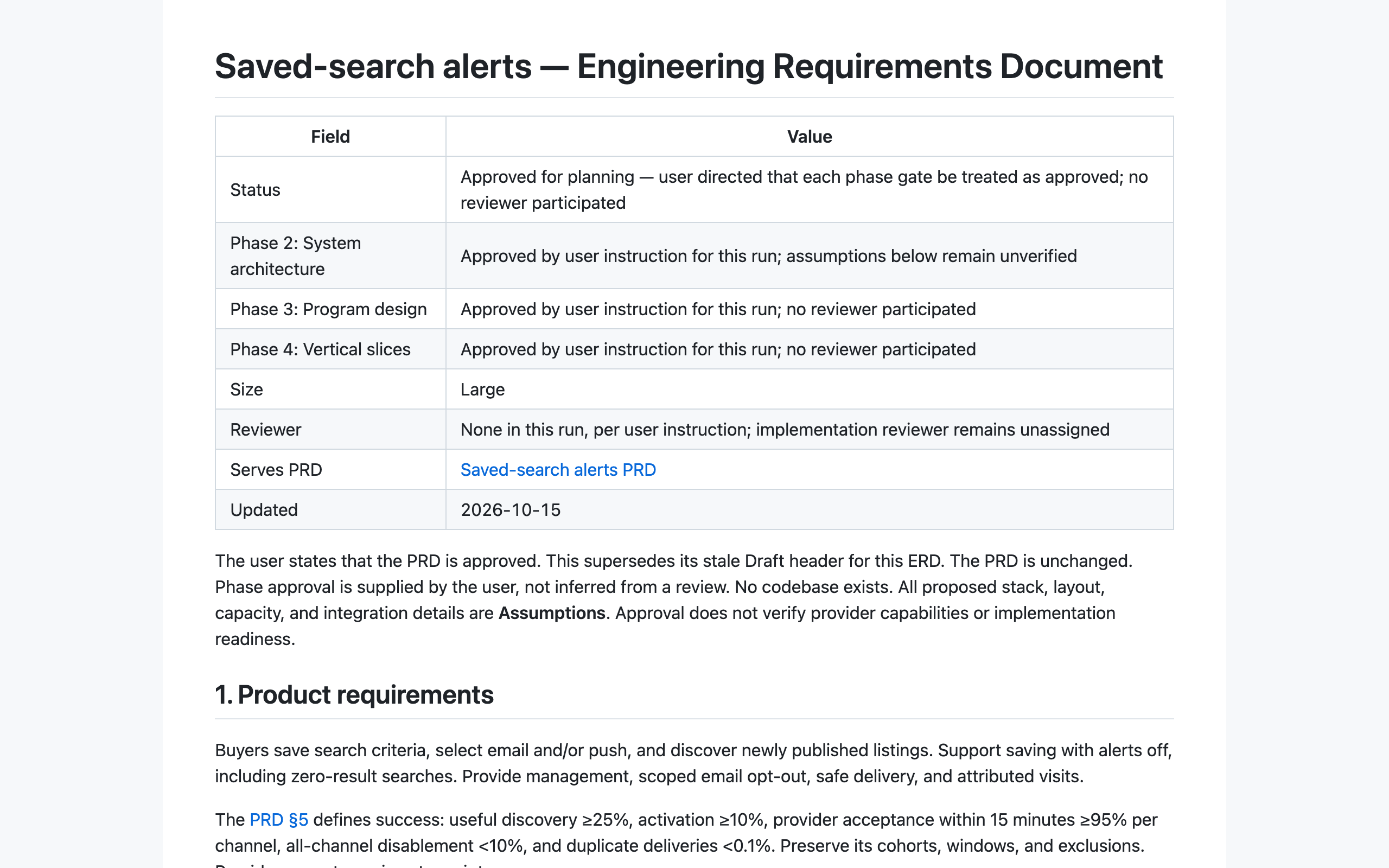

Saved-search alerts — Engineering Requirements Document

The user states that the PRD is approved. This supersedes its stale Draft header for this ERD. The PRD is unchanged. Phase approval is supplied by the user, not inferred from a review. No codebase exists. All proposed stack, layout, capacity, and integration details are

Assumptions. Approval does not verify provider capabilities or implementation readiness.

1. Product requirements

Buyers save search criteria, select email and/or push, and discover newly published listings. Support saving with alerts off, including zero-result searches. Provide management, scoped email opt-out, safe delivery, and attributed visits.

The PRD §5 (saved-search-alerts-prd.md) defines success: useful discovery ≥25%, activation ≥10%, provider acceptance within 15 minutes ≥95% per channel, all-channel disablement <10%, and duplicate deliveries <0.1%. Preserve its cohorts, windows, and exclusions. Provider acceptance is not receipt.

Design references: inline setup (search-inline.html), management (saved-searches.html), email preferences (email-preferences.html), and alert previews (alert-previews.html). Modal setup (search-modal.html) remains an unselected alternative. These are product mockups, not working integrations.

2. Functional requirements

2.1 Resolve ambiguity

IDs below provide traceability to the PRD. Product gaps remain proposals for the future product owner. The user requested assumptions instead of questions during this run.

If a proposed product answer changes, update the affected ERD sections and review their gates again. Keep product intent in the PRD. No stakeholder messages were sent.

2.2 Contracts per journey

The following are normative design contracts, not an existing API. Use HTTPS, JSON, authenticated account identity, UTC timestamps, and opaque UUIDs. Reject unknown fields. Mutations require CSRF protection and an Idempotency-Key; edits also require If-Match: <revision>. Replays return the original result; key reuse with another body is a conflict.

Criteria = {
  schemaVersion: 1, keywords: string[0..256],
  filters: Record<catalogFilterId, string | string[] | boolean | integer>,
  location: null | {placeId: string, latitude: decimal, longitude: decimal,
                    radiusMetres: integer}
}
SaveInput = {name: string[1..80], criteria: Criteria,
             channels: {email: boolean, push: boolean}}
Search = {id, name, criteria, summary, revision: integer,
          paused: boolean, pauseReason: null | "user" | "invalid_criteria",
          channels: {email: ChannelState, push: ChannelState}, createdAt, updatedAt}
ChannelState = {enabled: boolean, eligible: boolean,
                reason: null | "unverified" | "permission" | "rejected"}
Error = {error: {code, message, retryable: boolean, field?: string,
                 existingSearchId?: UUID}, requestId}

Common errors: 400 INVALID_REQUEST (shape/unknown fields), 401 SIGN_IN_REQUIRED, 403 FEATURE_DISABLED or CSRF_FAILED, 404 NOT_FOUND (includes foreign IDs), 429 RATE_LIMITED with Retry-After, 503 TEMPORARY_FAILURE. Successful writes return ETag. List and details never expose provider tokens. Login may redirect only to a validated same-origin return key. Opt-out uses capability tokens rather than an account session; form action validates origin and a form nonce.

ListingFirstPublished.v1 = {
  eventId: UUID, listingId: UUID, firstPublishedAt: timestamp,
  publicationSequence: integer, searchSchemaVersion: integer,
  publicSnapshot: SearchDocument
}
AccountDeleted.v1 = {eventId, userId, occurredAt}
ChannelEligibilityChanged.v1 = {eventId, userId, channel, eligible, occurredAt}
SearchSchemaInvalidated.v1 = {eventId, schemaVersion, affectedFilterIds, occurredAt}
ProviderFeedback.v1 = {eventId, deliveryId, outcome:
  "accepted"|"permanent_failure"|"temporary_failure", providerTime}

Publication events must originate atomically with first publication. Consumption is at least once, deduplicated by eventId and listing identity. Event version mismatches quarantine the event, never weaken filters. Full generated API/event documentation will come from runtime schemas during implementation.

2.3 Out of scope

Exclude price drops, listing edits, inventory backfill, SMS, seller alerts, paid tiers, recommendations, shared searches, custom schedules, ranking changes, and publication-rule changes. Daily digests, quiet hours, and configurable frequency remain future work. This ERD does not build accounts, a marketplace, or provider infrastructure. Their adapters are integration prerequisites, not assumed completed systems.

2.4 Decisions and constraints

All A-series items are Assumptions, because no codebase or deployment exists.

Assumed external ports: account authentication/deletion, verified email, device registration/permission, search schema/evaluator, listing availability, first-publication events, email and push providers, and experiment assignment. Validate each with a real adapter before beta. No installations, purchases, commits, issues, or live changes are authorized by this document.

2.5 Engineering problems to solve

1. Prove exact criteria parity on keyword, price, category, location, and missing-field boundaries.
2. Ensure publication events cannot be lost between marketplace commit and ingestion.
3. Make overlap ownership, caps, and retries safe under concurrent workers.
4. Bound scans and cap backlogs without removing matches silently.
5. Define cancellation ordering when a provider call is slow or ambiguous.
6. Preserve attribution without leaking criteria or storing addresses in analytics.
7. Reconcile provider acceptance after worker crashes; quarantine incompatible adapters.

3. Non-functional requirements

All infrastructure targets below are Assumptions, except PRD targets explicitly named.

Timing feasibility: with uniform arrival and a fixed 30-second post-window delay, approximately 3.3% miss 15 minutes before caps. At 60 seconds, approximately 6.7% miss. These are estimates, not measured guarantees. G1/G2 require measured evidence; do not redefine the denominator to pass.

4. Back-of-the-envelope estimate

4.1 Load

Sizing inputs are Assumptions, not marketplace data. Use decimal GB. No attachment/media storage is required.

Do not assume candidate reduction is safe: index extraction must return a superset. Validate against full evaluation. If peak budget fails, increase worker capacity or design a measured reverse index before beta. Do not add a broker based only on these estimates.

4.2 Sync or async

Synchronous: management read/write, validation, ownership/eligibility checks, preference confirmation, and click destination resolution. These are needed to answer a user action.

Asynchronous: publication ingestion, matching, grouping, capped queues, provider calls, feedback, metrics export, filter invalidation sweeps, and deletion purge. Deletion first sets a synchronous account stop marker; purge follows. Provider timeouts never block a settings response.

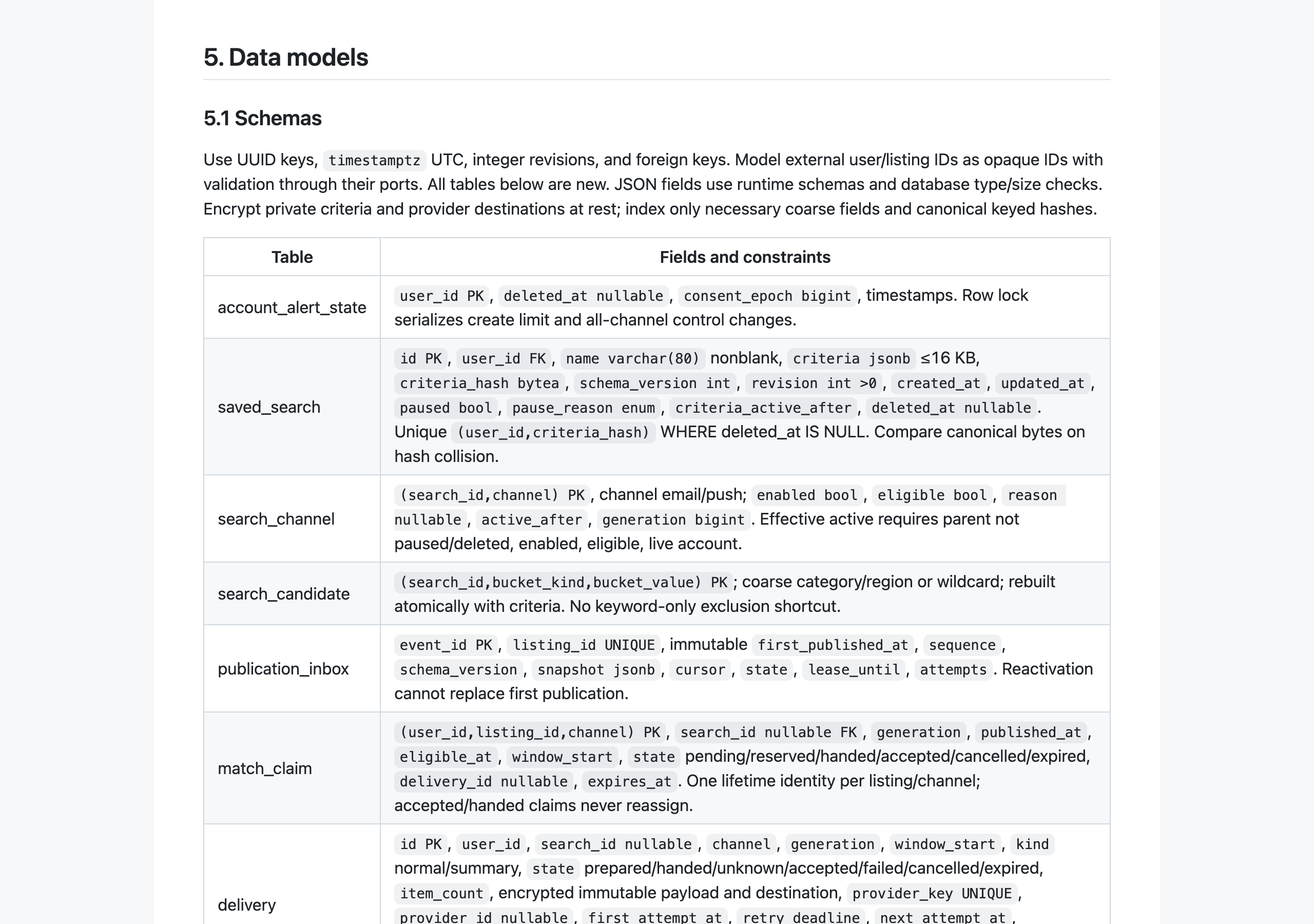

5. Data models

5.1 Schemas

Use UUID keys, timestamptz UTC, integer revisions, and foreign keys. Model external user/listing IDs as opaque IDs with validation through their ports. All tables below are new. JSON fields use runtime schemas and database type/size checks. Encrypt private criteria and provider destinations at rest; index only necessary coarse fields and canonical keyed hashes.

Criteria validation: UTF-8; name measured in Unicode code points; reject control characters. Keywords preserve search semantics. Canonicalization removes pagination/sort, sorts set-valued filters, normalizes values using the shared search parser, and retains explicit location. No synonym rewriting. At most 32 filters and 100 values per set, subject to narrower catalog limits. Latitude −90..90, longitude −180..180, radius 1..500,000 metres (Assumption). Prices use nonnegative integer minor units and an allowed currency code; no floating-point money. Unknown or removed filter IDs fail closed. These limits must agree with search before integration.

Retention (Assumption G5): pending cap matches ≤7 days; retry payload ≤24 hours after first attempt; accepted payload, tokens, and audit ≤90 days. Token lifetime 90 days. Mutation replay results 24 hours. Processed inbox/outbox/feedback 7 days after checkpoint/export. Keep a minimal first-publication ledger and user/listing/channel tombstones for account lifetime to prevent replay duplicates after audit expiry. After 90 days remove tombstone search linkage, retaining only keyed identifiers and state. Account deletion revokes tokens and stops sends immediately; purge account-linked operational data within 24 hours and analytics within 7 days. Backups expire within 35 days; deletion ledger reapplies purges on restore. Anonymous aggregate counts may remain. Legal retention is not established here.

5.2 Access patterns

Order transaction locks: account row → channel budget rows (email then push) → saved-search rows ordered by ID → claims/deliveries. Workers never hold a claim lock while acquiring an account lock. Serialization or deadlock errors retry bounded transactions with jitter. Publication processing checkpoints only after all candidate pages commit. Duplicate pages insert no duplicate claims/events.

6. Architecture

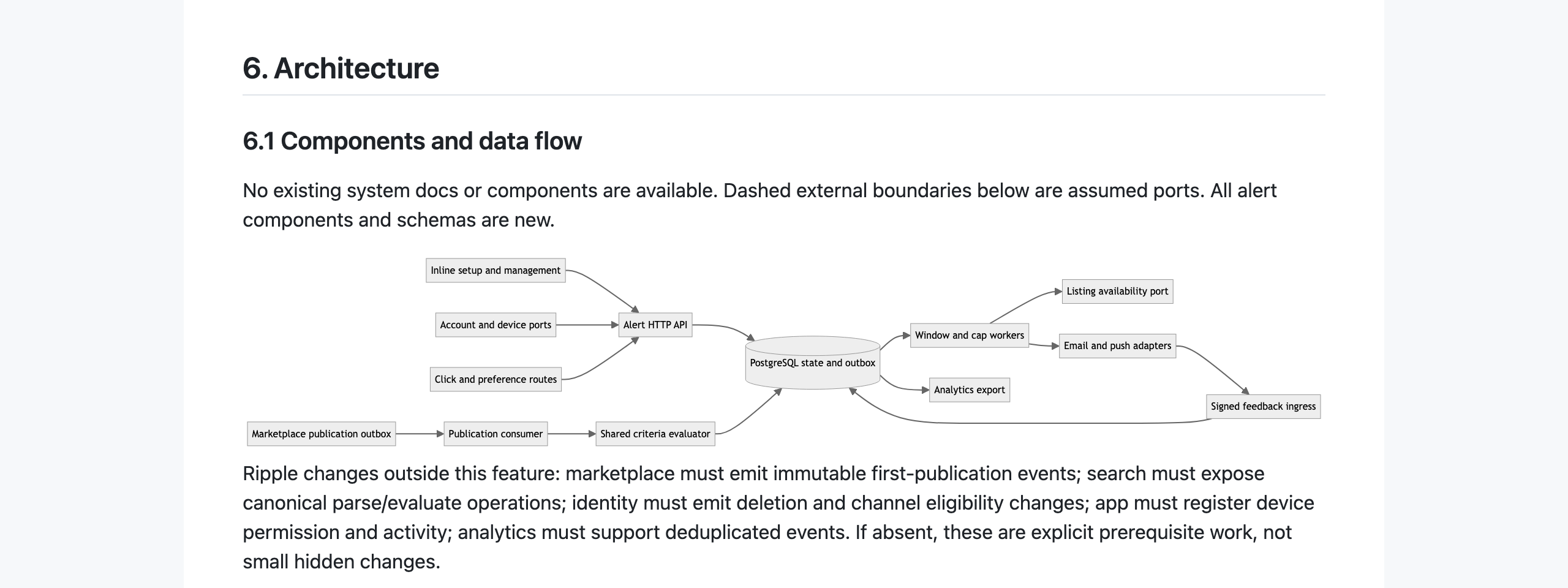

6.1 Components and data flow

No existing system docs or components are available. Dashed external boundaries below are assumed ports. All alert components and schemas are new.

flowchart LR
    UI[Inline setup and management] --> API[Alert HTTP API]
    API --> DB[(PostgreSQL state and outbox)]
    AUTH[Account and device ports] --> API
    PUB[Marketplace publication outbox] --> IN[Publication consumer]
    IN --> MATCH[Shared criteria evaluator]
    MATCH --> DB
    DB --> WORK[Window and cap workers]
    WORK --> LIVE[Listing availability port]
    WORK --> PROVIDER[Email and push adapters]
    PROVIDER --> FEEDBACK[Signed feedback ingress]
    FEEDBACK --> DB
    LINK[Click and preference routes] --> API
    DB --> METRICS[Analytics export]

Ripple changes outside this feature: marketplace must emit immutable first-publication events; search must expose canonical parse/evaluate operations; identity must emit deletion and channel eligibility changes; app must register device permission and activity; analytics must support deduplicated events. If absent, these are explicit prerequisite work, not small hidden changes.

6.2 Sequence diagrams

sequenceDiagram
    actor Buyer
    participant UI as Setup client
    participant Auth as Identity port
    participant API as Alert API
    participant DB as PostgreSQL
    Buyer->>UI: Save search
    UI->>Auth: Sign in if needed; preserve local draft
    UI->>API: POST criteria and channels, idempotency key
    API->>Auth: Check channel eligibility
    API->>DB: Lock account; check limit and duplicate; insert and record result
    DB-->>API: Commit Search with revision
    API-->>UI: 201 Search
    UI-->>Buyer: Confirm on/off and management link

sequenceDiagram
    participant Pub as Publication outbox
    participant Match as Matcher
    participant DB as PostgreSQL
    participant Batch as Delivery worker
    participant Live as Listing port
    participant Provider
    Pub->>Match: FirstPublished event, at least once
    Match->>DB: Dedup event; find candidates
    Match->>Match: Evaluate same search semantics
    Match->>DB: Choose oldest search; insert per-user/channel claim
    Batch->>DB: At window close, claim due work
    Batch->>Live: Validate current public availability
    Batch->>DB: Under locks recheck state, reserve cap, freeze payload, commit handed
    Batch->>Provider: Send with stable provider key
    Provider-->>Batch: Accepted, definite failure, or ambiguous timeout
    Batch->>DB: Record acceptance or retry/reconciliation state
    DB->>DB: Export eligible and acceptance events idempotently

sequenceDiagram
    actor Buyer
    participant UI as Management or preference page
    participant API as Alert API
    participant DB as PostgreSQL
    participant Worker
    Buyer->>UI: Confirm edit, pause, delete, or email off
    UI->>API: Mutation with revision or scoped token
    API->>DB: Acquire same account/channel locks as handoff
    API->>DB: Change generation/consent; cancel prepared and pending work
    DB-->>API: Commit confirmed state
    API-->>UI: Updated state; handed messages may still arrive
    Worker->>DB: Recheck before future handoff
    DB-->>Worker: Reject stale generation or disabled channel

sequenceDiagram
    actor Buyer
    participant Links as Link resolver
    participant Auth as Identity port
    participant Listings as Listing/search ports
    participant Events as Event outbox
    Buyer->>Links: Open opaque alert link
    Links->>Auth: Authenticate owner; preserve opaque destination
    Links->>Listings: Single listing or criteria results snapshot
    Listings-->>Buyer: Listing, results, or unavailable fallback
    Buyer->>Events: Actual matched listing view with attribution context
    Events->>Events: Validate delivery membership and seven-day window

6.3 Tools and technologies

Assumption: TypeScript strict mode; runtime Zod schemas; React UI; a small Node HTTP adapter; PostgreSQL transactions, constraints, jobs, and backups; Playwright E2E; structured JSON logs. Select exact framework and supported versions when the repository exists. Email/push remain provider-neutral ports with acceptance lookup and idempotent send. No package installation is part of this task. There is no existing stack to diverge from. Do not use a cache or external queue as the source of consent or deduplication.

7. Client-side logic

7.1 Journeys to interfaces

7.2 Error states

7.3 Analytics events

All events carry eventId, time, experiment group, and pseudonymous user key; add channel/search/listing/delivery IDs only when applicable. Server owns authoritative state events. Exclude staff/test accounts in cohort queries.

Primary denominator uses users with active alerts and eligible matches during L..L+23 days, counted once. Numerator uses a matched listing view through an alert within seven days of that match. Result-page landing alone does not count; join clicked listing to delivery items. Retention is another attributed view on a later UTC day within 30 days. Report a sensitivity check using buyer-local days if needed. No email-open tracking. Compare experiment return listing views over 30 days; do not label the descriptive primary metric causal. Duplicate audit uses repeated accepted listing/channel members, including provider reconciliation evidence.

7.4 Client validation and security

Client checks name length, selected filters, channel readiness, and form validity. Server repeats every check. Escape names, titles, and summaries; render no user-provided HTML. Keep auth in secure HttpOnly cookies. Do not persist drafts beyond the tab. Do not expose tokens to third-party analytics. Set no-referrer and no-store on token pages; remove tokens from visible URL after secure form initialization. Keep labels, keyboard controls, focus restoration, and live status announcements from the mockups.

8. Logging and alerts

Log request/event/delivery IDs, operation, duration, outcome, generation, attempt, adapter, and reason. Never log queries, names, precise locations, addresses, device tokens, link tokens, or message bodies. Restrict audit access to support roles; record access.

Expose replay and reconciliation tools by ID with dry-run default. Feature flag defaults off. Delivery kill switch blocks new handoffs and retries; unknown acceptance reconciliation continues. No silent production reset of deduplication keys.

9. Single points of failure

10. Security considerations

Before beta, request specialist review of capability links, deletion/backup policy, messaging consent requirements, and provider signature validation. These checks are planned dependencies; no legal compliance claim is made.

Phase 2 gate: Approved by explicit user instruction for this run. No reviewer participated. Proceed to program design with labeled assumptions G1–G6 and A1–A12.

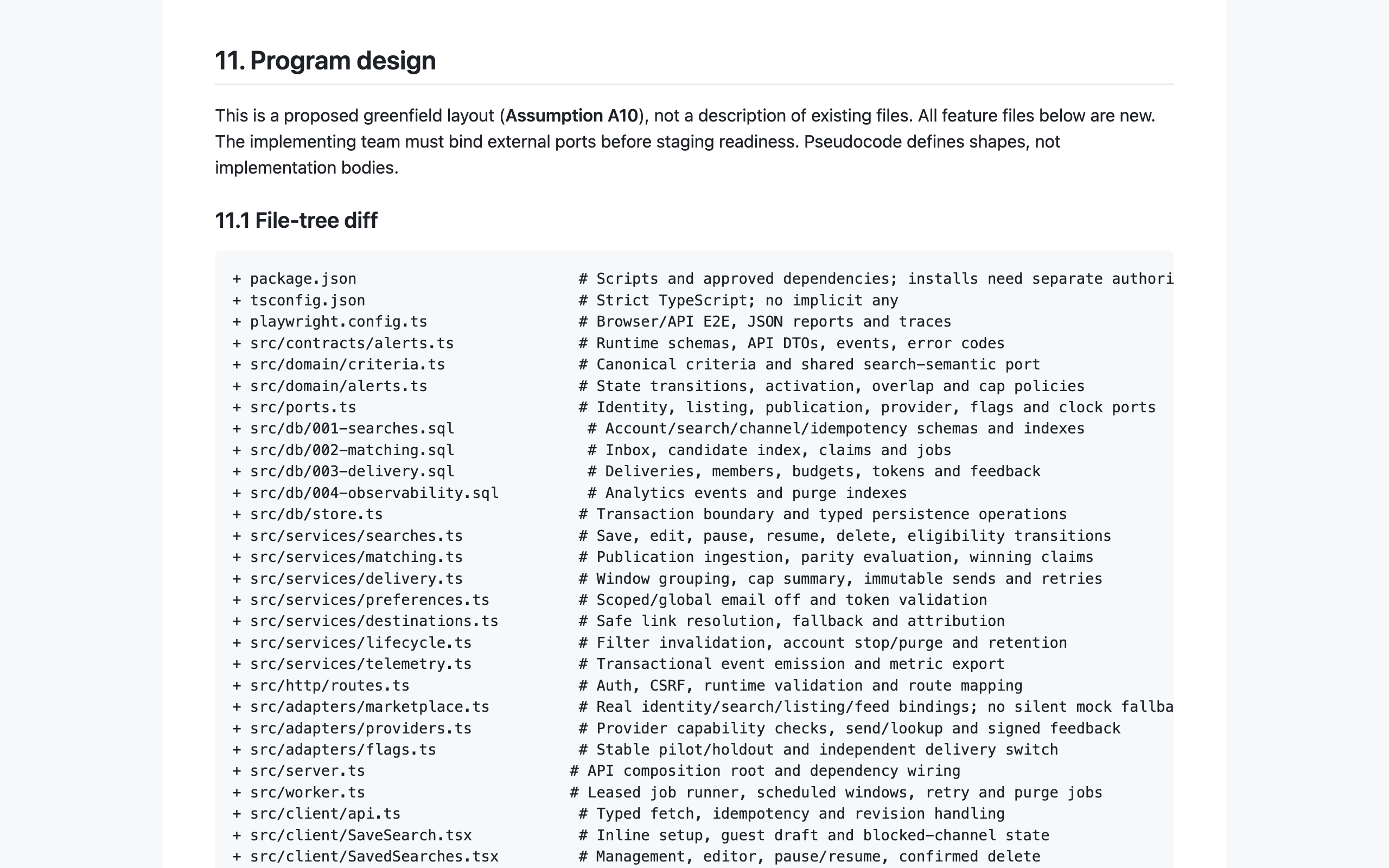

11. Program design

This is a proposed greenfield layout (Assumption A10), not a description of existing files. All feature files below are new. The implementing team must bind external ports before staging readiness. Pseudocode defines shapes, not implementation bodies.

11.1 File-tree diff

+ package.json                         # Scripts and approved dependencies; installs need separate authorization
+ tsconfig.json                        # Strict TypeScript; no implicit any
+ playwright.config.ts                 # Browser/API E2E, JSON reports and traces
+ src/contracts/alerts.ts              # Runtime schemas, API DTOs, events, error codes
+ src/domain/criteria.ts               # Canonical criteria and shared search-semantic port
+ src/domain/alerts.ts                 # State transitions, activation, overlap and cap policies
+ src/ports.ts                         # Identity, listing, publication, provider, flags and clock ports
+ src/db/001-searches.sql               # Account/search/channel/idempotency schemas and indexes
+ src/db/002-matching.sql               # Inbox, candidate index, claims and jobs
+ src/db/003-delivery.sql               # Deliveries, members, budgets, tokens and feedback
+ src/db/004-observability.sql          # Analytics events and purge indexes
+ src/db/store.ts                      # Transaction boundary and typed persistence operations
+ src/services/searches.ts             # Save, edit, pause, resume, delete, eligibility transitions
+ src/services/matching.ts             # Publication ingestion, parity evaluation, winning claims
+ src/services/delivery.ts             # Window grouping, cap summary, immutable sends and retries
+ src/services/preferences.ts          # Scoped/global email off and token validation
+ src/services/destinations.ts         # Safe link resolution, fallback and attribution
+ src/services/lifecycle.ts            # Filter invalidation, account stop/purge and retention
+ src/services/telemetry.ts            # Transactional event emission and metric export
+ src/http/routes.ts                   # Auth, CSRF, runtime validation and route mapping
+ src/adapters/marketplace.ts          # Real identity/search/listing/feed bindings; no silent mock fallback
+ src/adapters/providers.ts            # Provider capability checks, send/lookup and signed feedback
+ src/adapters/flags.ts                # Stable pilot/holdout and independent delivery switch
+ src/server.ts                       # API composition root and dependency wiring
+ src/worker.ts                       # Leased job runner, scheduled windows, retry and purge jobs
+ src/client/api.ts                    # Typed fetch, idempotency and revision handling
+ src/client/SaveSearch.tsx            # Inline setup, guest draft and blocked-channel state
+ src/client/SavedSearches.tsx         # Management, editor, pause/resume, confirmed delete
+ src/client/EmailPreferences.tsx      # Token-scoped read-only page plus explicit opt-out form
+ src/client/AlertDestination.tsx      # Sign-in return, listing/results and unavailable fallback
+ src/client/routes.tsx               # Proposed route mounts into marketplace client
+ src/templates/alerts.ts             # Generic push and escaped email templates with exact counts
+ e2e/fixtures.ts                     # Synthetic users/listings, controllable clock and adapter fixtures
+ e2e/alerts.spec.ts                   # Save/manage/guest/validation journeys
+ e2e/matching.spec.ts                 # Publication/parity/edit/overlap/invalid-filter journeys
+ e2e/delivery.spec.ts                 # Windows, caps, retry, concurrency and cancellation journeys
+ e2e/preferences.spec.ts              # Scoped/global opt-out, tokens and destination attribution
+ e2e/lifecycle.spec.ts                # Revocation, account purge, retention, flags and metrics
+ e2e/load.ts                         # Repeatable synthetic load and backlog recovery scenario
+ scripts/e2e.mjs                     # Start isolated app/worker/DB fixtures; write run manifest
+ scripts/replay.ts                   # Authorized ID-scoped dry-run/replay/reconciliation utility
+ docs/alerts-runbook.md              # Flags, adapter capability results, alerts and recovery steps

No existing file is modified or deleted by this plan. Generated output goes under artifacts/e2e/<run-id>/ and includes report.json, manifest.json, provider-ledger.json, and failure traces. Reports must contain no live credentials or personal data. The current ERD and mockups are input documents, not runtime code.

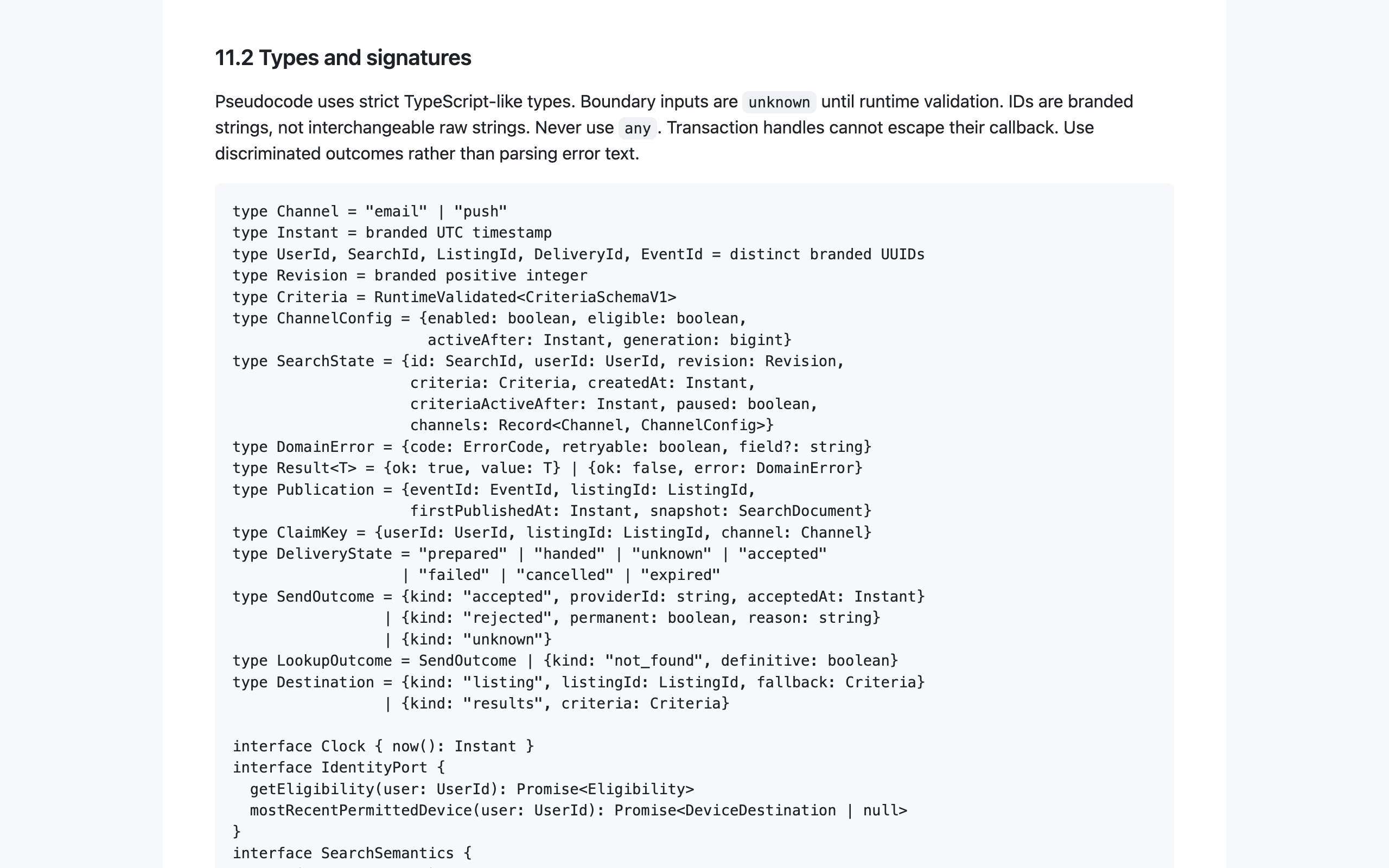

11.2 Types and signatures

Pseudocode uses strict TypeScript-like types. Boundary inputs are unknown until runtime validation. IDs are branded strings, not interchangeable raw strings. Never use any. Transaction handles cannot escape their callback. Use discriminated outcomes rather than parsing error text.

type Channel = "email" | "push"
type Instant = branded UTC timestamp
type UserId, SearchId, ListingId, DeliveryId, EventId = distinct branded UUIDs
type Revision = branded positive integer
type Criteria = RuntimeValidated<CriteriaSchemaV1>
type ChannelConfig = {enabled: boolean, eligible: boolean,
                      activeAfter: Instant, generation: bigint}
type SearchState = {id: SearchId, userId: UserId, revision: Revision,
                    criteria: Criteria, createdAt: Instant,
                    criteriaActiveAfter: Instant, paused: boolean,
                    channels: Record<Channel, ChannelConfig>}
type DomainError = {code: ErrorCode, retryable: boolean, field?: string}
type Result<T> = {ok: true, value: T} | {ok: false, error: DomainError}
type Publication = {eventId: EventId, listingId: ListingId,
                    firstPublishedAt: Instant, snapshot: SearchDocument}
type ClaimKey = {userId: UserId, listingId: ListingId, channel: Channel}
type DeliveryState = "prepared" | "handed" | "unknown" | "accepted"

                   | "failed" | "cancelled" | "expired"

type SendOutcome = {kind: "accepted", providerId: string, acceptedAt: Instant}

                 | {kind: "rejected", permanent: boolean, reason: string}
                 | {kind: "unknown"}

type LookupOutcome = SendOutcome | {kind: "not_found", definitive: boolean}
type Destination = {kind: "listing", listingId: ListingId, fallback: Criteria}

                 | {kind: "results", criteria: Criteria}


interface Clock { now(): Instant }
interface IdentityPort {
  getEligibility(user: UserId): Promise<Eligibility>
  mostRecentPermittedDevice(user: UserId): Promise<DeviceDestination | null>
}
interface SearchSemantics {
  parse(input: unknown): Result<Criteria>
  canonicalize(criteria: Criteria): CanonicalCriteria
  candidateBuckets(criteria: Criteria): NonEmptyReadonlyArray<Bucket>
  matches(criteria: Criteria, document: SearchDocument): boolean
}
interface ListingPort {
  getPublic(ids: readonly ListingId[]): Promise<ReadonlyMap<ListingId, PublicListing>>
}
interface ProviderPort {
  capabilities(): {idempotentSend: boolean, acceptanceLookup: boolean}
  send(key: DeliveryId, payload: FrozenPayload): Promise<SendOutcome>
  lookup(key: DeliveryId): Promise<LookupOutcome>
  verifyFeedback(raw: Uint8Array, headers: HeaderMap): Result<ProviderFeedback>
}
interface Flags {
  cohort(user: UserId): "pilot" | "holdout" | "outside"
  canCreate(user: UserId): boolean
  canHandoff(channel: Channel): boolean
}
interface Store {
  transaction<T>(work: (tx: Transaction) => Promise<T>): Promise<T>
  leaseJobs(now: Instant, limit: number): Promise<readonly Job[]>
}

saveSearch(actor: UserId, input: SaveInput, key: IdempotencyKey): Promise<Result<Search>>
changeSearch(actor: UserId, id: SearchId, patch: PatchInput,
             expected: Revision, key: IdempotencyKey): Promise<Result<Search>>
deleteSearch(actor: UserId, id: SearchId, expected: Revision,
             key: IdempotencyKey): Promise<Result<void>>
ingestPublication(event: Publication): Promise<void>
matchPublication(eventId: EventId, cursor: CandidateCursor | null): Promise<PageOutcome>
chooseOwner(matches: readonly SearchState[], channel: Channel): SearchId | null
prepareWindow(search: SearchId, channel: Channel, window: Instant): Promise<DeliveryId | null>
releaseCapSummary(user: UserId, channel: Channel, now: Instant): Promise<DeliveryId | null>
tryHandoff(id: DeliveryId): Promise<SendOutcome | Deferred | Cancelled>
reconcileDelivery(id: DeliveryId): Promise<void>
applyFeedback(event: ProviderFeedback): Promise<void>
optOut(token: OpaqueToken, scope: "search" | "all"): Promise<Result<OptOutReceipt>>
resolveDestination(token: OpaqueToken, actor: UserId | null): Promise<Result<DestinationOrLogin>>
recordView(actor: UserId, listing: ListingId, context: AttributionContext): Promise<void>
stopAccount(user: UserId): Promise<void>
purgeAccount(user: UserId): Promise<PurgeReceipt>
invalidateFilters(event: FilterInvalidation): Promise<void>
exportEvents(cursor: EventCursor): Promise<ExportReceipt>

FrozenPayload includes exact member IDs/count, escaped public details, chosen device or verified address, link IDs, and schema version. It is never mutated after handoff. Injectable clock advances only in test/staging; production binds server UTC. Provider key remains stable across retries and recovery.

11.3 Call stacks

+ HTTP POST /saved-searches
+   routes.validateAndAuthenticate
+     searches.saveSearch
+       identity.getEligibility
+       criteria.parse / canonicalize
+       store.transaction
+         replayOrRejectIdempotencyKey
+         lockAccount / checkLimit / checkDuplicate
+         insertSearchAndChannels / candidateBuckets
+         telemetry.recordActivation / persistCommandResult
+
+ HTTP PATCH or DELETE /saved-searches/:id
+   routes.validateAuthCsrfRevision
+     searches.changeSearch or deleteSearch
+       store.transaction
+         lockAccountAndChannels / checkOwnerAndRevision
+         updateStateAndGeneration / cancelUnhandedClaims
+         persistCommandResult / telemetry.recordChange
+
+ publication consumer
+   matching.ingestPublication
+     store.insertInboxOnce
+   worker.leaseJobs
+     matching.matchPublication
+       candidateBuckets / searchSemantics.matches
+       store.transaction
+         recheckCurrentState / chooseOwner / upsertClaimOnce
+         telemetry.recordEligible / checkpointCandidatePage
+
+ worker.windowTick or budgetCapacityTick
+   delivery.prepareWindow or releaseCapSummary
+     listingPort.getPublic / templates.render
+     delivery.tryHandoff
+       store.transaction
+         recheckGenerationsAndConsent / claimBudget / freezeMembers
+         markHandedAndPersistKey
+       provider.send
+       store.recordOutcomeAndOutbox
+
+ worker.retryTick or HTTP signed provider feedback
+   delivery.reconcileDelivery or applyFeedback
+     provider.lookup or verifyFeedback
+     store.transaction
+       settleBudgetAndClaims / recordAcceptanceOnce
+       disablePermanentlyRejectedChannel if required
+
+ HTTP preference POST
+   preferences.optOut
+     validateCapabilityAndFormNonce
+     store.transaction
+       lockAccountAndChannels / disableEmailScope
+       incrementGenerations / cancelUnhandedWork / recordReceipt
+
+ HTTP /a/:token and listing page view
+   destinations.resolveDestination
+     validateToken / authenticateOwner / listingPort.getPublic
+     returnListingOrResultsOrFallback
+   destinations.recordView
+     validateDeliveryMembershipAndWindow / telemetry.enqueueViewOnce
+
+ account deletion, eligibility or filter event
+   lifecycle.stopAccount or searches.applyEligibility or invalidateFilters
+     store.transaction
+       stopEffectiveChannels / cancelUnhandedWork / revokeTokens
+   worker.purgeTick
+     lifecycle.purgeAccount / expireRetention
+
+ client route mount
+   api.getCapabilities or listSearches
+   SaveSearch / SavedSearches / EmailPreferences / AlertDestination
+     api.mutateWithStableKeyAndRevision
+       renderConfirmedServerStateOrMappedError

11.4 Test seams

Write failure scenarios before implementation. No post-hoc unit tests. Primary proof is browser/API → real isolated PostgreSQL → real worker → recording provider adapter → destination. Inject identity/search/listing/provider ports and Clock at composition roots. Do not mock domain services, database transactions, cap checks, or HTTP handlers.

Every run writes a manifest with seed, UTC/fake-clock times, dependency versions, command, expected/actual checks, database fixture identity, and exit status. Provider ledger records synthetic delivery IDs, members, key, attempts, and acceptance times. JSON report contains test results; failed browser cases add traces/screenshots. An empty test selection fails the run. Repeat the same seed and clock schedule to reproduce.

The fake provider proves our behavior, not vendor behavior. Before beta, run the same contract against sandbox providers with synthetic recipients. Verify idempotency lifetime ≥24h, definitive acceptance lookup, signed feedback, device invalidation, and rate limits. If either capability is absent, do not enable that channel until a revised design is approved. No integrated E2E was run during ERD writing.

11.5 Pattern choices

These questions record choices for the implementing reviewer. Recommendations are selected as

Assumptions under the user's gate instruction.

11.6 Business rules

Only ordering-sensitive rules use pseudocode. These five procedures constrain implementation.

Rule 1 — mutation and activation boundaries

Validate shape and ownership; parse canonical criteria with shared search semantics.
For enabling a channel, obtain current eligibility; fail without mutation if unavailable.
Lock account, then channel budgets, then owned search rows.
Return stored idempotent result before considering revision or duplicate errors.
Check feature eligibility for creation; management is allowed while rollout is off.
Check revision, duplicate criteria, and live-row limit atomically.
On criteria edit: bump criteria and channel generations; set active_after = commit-time boundary.
On resume: set active_after for every enabled channel; discard paused-period backlog.
On newly enabled channel: bump only that channel generation; set its active_after.
On rename: keep generations and pending work.
On pause/delete/disable: cancel all affected unhanded work and release its reservations.
On global email off: disable email on every current search; never change push.
Commit state, receipt, idempotent result and telemetry together.

Activation timestamps are taken from the database transaction immediately before commit. Publications must be strictly later. A publication arriving late still uses firstPublishedAt, not ingestion time. Clock skew is monitored on the publication producer; imported timestamps cannot bypass activation.

Rule 2 — publication matching and ownership

Deduplicate immutable event ID and first-publication listing ID.
Enumerate a complete superset of candidates, including wildcard searches.
Evaluate exact shared semantics; require firstPublishedAt > effective active_after.
For each user/channel, evaluate all matching active searches before choosing the oldest.
Lock account/channel; reread active generations to exclude concurrent edits or pause.
Insert one claim per user/listing/channel; event replay is a no-op.
Keep an accepted or handed claim terminal; never send that listing/channel again.
If a pending owner becomes invalid, cancel it; do not bypass cancellation by reassignment.
Record eligibility once; retain original eligibility time even if later capped or cancelled.
Mark publication complete only after all bounded candidate pages are durable.

For paged scans, retain candidates per user until all their searches are evaluated; an account has at most 20. Ownership never depends on page order. Cancellation does not fall through to a younger overlapping search for the same publication (Assumption, to preserve stop intent). Later publications can match the remaining searches.

Rule 3 — grouping, rolling cap, and handoff

Group pending claims by search, channel, generation and UTC 15-minute window.
At window close, remove expired claims and listings no longer public.
If no members remain, cancel preparation; send nothing.
Read current eligibility/device and the delivery stop switch; fail closed if unknown.
Lock account/channel/search; reread consent, generations, and cancellation markers.
Count accepted slots with accepted_at > now - 24h, plus unresolved reservations.
If count >= 4, hold pending claims; schedule at earliest known release or reconciliation.
When capacity returns, choose oldest pending search and combine its deferred windows.
Create one exact-count summary; leave other searches pending, ordered oldest first.
Reserve one message slot, freeze members/destination/payload, persist stable provider key.
Commit handed state as the cancellation boundary; invoke provider immediately.
Use one most recently active permitted device, tie-breaking by device ID.
On acceptance, set slot accepted_at to provider acceptance time and complete claims.

A normal window emits at most one logical message per search/channel/generation. A retry is the same message. A cap summary consolidates deferred windows and consumes one slot. Render at most ten listing cards in email but retain exact total count and a View matches CTA. Current search results may include older inventory; only recorded delivery members qualify for alert attribution.

Handoff limitation — Assumption: the durable handed transition defines dispatch authorization immediately before the external call. It closes the unavoidable database/provider transaction gap. A control confirmed after this boundary cannot recall that attempt, even if the worker crashes before transmitting it. A recovery worker must recheck current consent before making a previously unattempted call; if consent is off, reconcile only and cancel if absence is definitive. Never replay a suppressed message blindly. This boundary and the mockup's “already-sent” wording require readiness review; document the copy as “Messages already being sent may still arrive.” This proposed copy clarification is a product gap, not a PRD edit.

Availability is checked just before handoff. A listing removed between that read and provider acceptance can still appear; its destination must show the unavailable fallback. No distributed lock with listing publication is assumed.

Rule 4 — retries and feedback

Persist first_attempt_at and deadline = first_attempt_at + 24h on first dispatch.
For ambiguous send: keep cap slot and immutable members; mark unknown.
Lookup provider key before retry; accepted lookup settles without another message.
If absence is definitive and current consent permits, retry same key and payload.
If consent changed, reconcile only; do not issue a new attempt.
Use delays 1m, 5m, 15m, then 60m with bounded jitter until deadline.
Respect provider Retry-After without extending the 24h deadline.
For definite temporary nonacceptance, keep the same reservation until retry or expiry.
For permanent rejection, release unsent slot; disable affected channel and show action needed.
If push token is invalid, remove that device; disable push only if none remain.
After deadline, expire known-unsent work; retain unknown slot until definitive reconciliation.
Deduplicate feedback; accepted status never regresses on late temporary errors.
A later bounce does not erase acceptance or refund the rolling accepted-message count.

Unknown outcomes can block a channel beyond 24h; page operators instead of risking duplicates. If lookup cannot resolve them, the provider fails A6. Do not fabricate acceptance or release unknown budget reservations. Preserve original metrics for a late acceptance.

Rule 5 — links, opt-out and deletion

GET validates token and renders a form or safe destination; never changes preferences.
Preference POST validates hash, scope, expiry, form nonce and account liveness.
Apply search/all email off under the same account/channel locks as dispatch.
Replaying opt-out succeeds; enabling always requires authenticated explicit choice.
Destination requires matching authenticated owner before exposing criteria or saved context.
Count a view only after loading a member listing, not from email open or redirect alone.
On account deletion, commit stop marker and revoke tokens before acknowledging event.
Cancel unhanded work, reconcile handed outcomes without sending, then purge by deadlines.
Retain a minimal deletion marker until publication replay and backup horizons expire.

Phase 3 gate: Approved by explicit user instruction for this run. No reviewer participated. Proceed to vertical slices using this proposed layout.

12. Vertical slices

Implement one to three slices per batch. Before each slice, add the named failing E2E scenario and retain its red report. Implement only that slice, then retain the green report. Target 100–200 handwritten changed lines per slice, excluding generated lockfiles and reports. These are estimates. If a slice exceeds 200 lines, split at a runnable scenario boundary and update this plan. Do not split into migrations-only or UI-only work.

Proposed harness command after slice 1: npm run e2e -- --grep '<case-id>' --run-id '<slice>-green'. Every run writes artifacts/e2e/<run-id>/{manifest.json,report.json,provider-ledger.json}. For a red run use <slice>-red. These commands are planned, not available in this document-only workspace. Dependency installation requires separate user authorization.

1. Tracer bullet: mock list through every planned layer.

   • Files: package.json, tsconfig.json, playwright.config.ts, scripts/e2e.mjs, e2e/fixtures.ts, e2e/alerts.spec.ts, src/contracts/alerts.ts, src/ports.ts, src/db/store.ts, src/services/searches.ts, src/http/routes.ts, src/server.ts, src/client/api.ts, src/client/SavedSearches.tsx, src/client/routes.tsx.
   • Change: serve one synthetic saved search through HTTP → service → injected mock repository; show it in the client. Wire real interfaces with minimal fields. Worker/provider paths enter later slices.
   • Touch: start the isolated harness and open /saved-searches; inspect GET /api/saved-searches.
   • Failing-first test S01_tracer_list: no route/row before; matching API and visible synthetic row after. This is an explicit mock baseline, not production storage.

2. Persist an alerts-off search.

   • Files: src/db/001-searches.sql, src/db/store.ts, src/domain/criteria.ts, src/contracts/alerts.ts, src/services/searches.ts, src/http/routes.ts, src/client/SaveSearch.tsx, src/client/routes.tsx, e2e/alerts.spec.ts.
   • Change: replace mock repository for create/list with real PostgreSQL. Save zero-result criteria with no channels. Keep identity/search adapters synthetic.
   • Touch: /search → Save search with no channel → /saved-searches; restart API and reload.
   • Test S02_persist_off: row survives restart and shows alerts off; no notification work exists.

3. Make create safe under retries and limits.

   • Files: src/domain/alerts.ts, src/services/searches.ts, src/db/store.ts, src/client/api.ts, src/client/SaveSearch.tsx, e2e/alerts.spec.ts.
   • Change: replace optimistic duplicate/limit checks with locked constraints, durable command receipts, canonical criteria duplicate detection, and UI error mapping.
   • Touch: save identical criteria twice; send concurrent creates at 19 existing searches.
   • Test S03_create_races: same-key replay creates once; altered-body replay conflicts; duplicate opens editor; count never exceeds 20.

4. Bind authenticated setup and channel eligibility.

   • Files: src/adapters/marketplace.ts, src/ports.ts, src/server.ts, src/services/searches.ts, src/http/routes.ts, src/client/SaveSearch.tsx, e2e/alerts.spec.ts.
   • Change: replace the fixed identity fixture at the production composition root with explicit account/device adapter bindings. Add guest draft restoration and email/push eligibility. Keep synthetic adapters in E2E only. Fail startup if live bindings are missing.
   • Touch: guest save → sign-in → restored setup; deny push permission; select verified email.
   • Test S04_identity_eligibility: cancellation creates nothing, foreign user cannot read/change search, unavailable channels never show active. Real identity adapter conformance is a readiness prerequisite.

5. Manage settings and future activation.

   • Files: src/services/searches.ts, src/domain/alerts.ts, src/http/routes.ts, src/client/SavedSearches.tsx, src/db/store.ts, e2e/alerts.spec.ts.
   • Change: replace static management controls with revision-aware edit, rename, pause/resume, and confirmed delete. Establish generation boundaries even before matching exists.
   • Touch: /saved-searches; edit in two tabs; cancel then confirm delete.
   • Test S05_manage: rename preserves generation; criteria edit/resume advance activation; stale tab gets 412; delete cancellation keeps row, confirmation removes it.

6. Ingest and prove one exact new match.

   • Files: src/db/002-matching.sql, src/services/matching.ts, src/domain/criteria.ts, src/adapters/marketplace.ts, src/worker.ts, src/db/store.ts, e2e/matching.spec.ts.
   • Change: replace the publication fixture path with a durable inbox/worker path and shared evaluator port; expose fixture publication only in isolated test harness.
   • Touch: save active search; inject one first-publication event through the harness; inspect its claim in the JSON report.
   • Test S06_first_publication: one post-activation match creates one claim; old inventory, listing edit, reactivation, wrong filter, replay, and pre-activation delayed event create none.

7. Resolve overlap and live criteria changes.

   • Files: src/services/matching.ts, src/services/searches.ts, src/domain/alerts.ts, src/db/store.ts, e2e/matching.spec.ts.
   • Change: replace single-search matching with candidate superset lookup and full per-user/channel ownership. Connect generation changes to claim cancellation.
   • Touch: save two overlapping searches, publish one listing, edit/pause the oldest before send preparation.
   • Test S07_overlap: oldest owns one claim per channel independent of page order; edited/paused pending claim cancels; resume produces no backlog; full scan and candidate lookup agree.

8. Send one email window end to end.

   • Files: src/db/003-delivery.sql, src/services/delivery.ts, src/templates/alerts.ts, src/adapters/providers.ts, src/worker.ts, src/db/store.ts, e2e/delivery.spec.ts.
   • Change: replace pending-claim inspection with a real window scheduler, delivery ledger and recording email adapter. Add durable stable key and budget reservation for every message, even this first path.
   • Touch: create email search; publish two matches; advance controlled clock to quarter-hour close; inspect rendered email and provider ledger.
   • Test S08_email_window: one exact-count message; unavailable members excluded; empty batch sends nothing; one slot used. Live sending remains disabled.

9. Deliver push to one permitted device.

   • Files: src/services/delivery.ts, src/adapters/providers.ts, src/templates/alerts.ts, src/ports.ts, e2e/delivery.spec.ts.
   • Change: replace push stub with a provider adapter and deterministic device selection; retain generic lock-screen text.
   • Touch: enable both channels with two permitted devices; publish a matching listing.
   • Test S09_push_device: one email and one push, most recent device only; no private location/name; missing optional email details omitted; no automatic channel fallback.

10. Enforce the rolling cap and deferred summary.

    • Files: src/services/delivery.ts, src/domain/alerts.ts, src/db/store.ts, src/worker.ts, e2e/delivery.spec.ts.
    • Change: replace initial single-slot flow with shared user/channel cap queries, oldest-search deferred summary, and seven-day backlog expiry.
    • Touch: cause five windows across multiple searches; advance to exactly 24h after first acceptance, then seven days.
    • Test S10_cap_summary: at most four slots accepted/reserved; concurrent workers cannot overshoot; one summary releases at capacity; remaining searches stay queued; expired members are recorded.

11. Recover uncertain delivery without duplicates.

    • Files: src/services/delivery.ts, src/adapters/providers.ts, src/http/routes.ts, src/worker.ts, src/db/store.ts, scripts/replay.ts, e2e/delivery.spec.ts.
    • Change: replace success-only provider behavior with durable lookup/retry, signed deduplicated feedback, and 24-hour expiry. Add dry-run reconciliation command.
    • Touch: harness simulates provider acceptance followed by process crash; restart worker and run ID-scoped reconciliation.
    • Test S11_retry_recovery: one accepted payload after crash/replay; unknown reserves capacity; consent change blocks a new call; permanent rejection disables only affected channel; retry deadline is enforced.

12. Cancel pending sends from email preferences.

    • Files: src/services/preferences.ts, src/services/searches.ts, src/http/routes.ts, src/client/EmailPreferences.tsx, src/client/routes.tsx, src/db/store.ts, e2e/preferences.spec.ts, e2e/delivery.spec.ts.
    • Change: replace mock preference form with scoped capability tokens and real opt-out. Connect all management stop actions to the same handoff locks.
    • Touch: email footer → preference page → search/all email off; pause/delete while worker is held before handoff.
    • Test S12_optout_races: GET changes nothing; pre-handoff stop cancels, post-boundary may arrive; push remains; explicit re-opt-in enables one search only; expired/forged tokens fail.

13. Resolve real destinations and record useful views.

    • Files: src/services/destinations.ts, src/services/telemetry.ts, src/db/004-observability.sql, src/http/routes.ts, src/client/AlertDestination.tsx, src/client/routes.tsx, src/templates/alerts.ts, e2e/preferences.spec.ts.
    • Change: replace placeholder message links with scoped same-origin resolution, frozen criteria fallback, and member-aware actual-view events.
    • Touch: open single and multiple-match messages; sign in; remove listing then revisit; click a matching results item.
    • Test S13_destination_view: correct listing/results, preserved sign-in target, unavailable fallback, cross-user denial, no count on redirect alone, eligible member view counted once.

14. Handle revocation, schema invalidation and account deletion.

    • Files: src/services/lifecycle.ts, src/services/searches.ts, src/adapters/marketplace.ts, src/worker.ts, src/db/store.ts, src/client/SavedSearches.tsx, e2e/lifecycle.spec.ts.
    • Change: replace fixed lifecycle fixtures with durable event handlers, immediate stop markers, and timed purge. Integrate invalid-filter pause and action-needed UI.
    • Touch: revoke device/email, remove filter, then delete synthetic account while a batch is prepared.
    • Test S14_lifecycle: unaffected channels survive; invalid filter never broadens; deleted account cannot send; purge receipt meets deadlines; replay/restore deletion ledger still blocks sends.

15. Measure rollout and operate the stop controls.

    • Files: src/adapters/flags.ts, src/services/telemetry.ts, src/services/delivery.ts, src/server.ts, src/worker.ts, src/client/SaveSearch.tsx, e2e/lifecycle.spec.ts, docs/alerts-runbook.md.
    • Change: replace always-on test flags and event sink with stable pilot/holdout assignment, send stop, durable metric export, structured logs and operational alerts.
    • Touch: switch entry and delivery flags independently; run a seeded metric cohort through export.
    • Test S15_flags_metrics: management stays available; no new sends while stopped; assignments remain stable; all PRD denominators/windows match fixture calculations, including capped and missing-attribution cases.

16. Prove adapter and capacity readiness.

    • Files: e2e/load.ts, e2e/fixtures.ts, scripts/e2e.mjs, src/adapters/marketplace.ts, src/adapters/providers.ts, docs/alerts-runbook.md.
    • Change: replace synthetic external bindings in staging with approved sandbox bindings. Record concrete capability results and measured capacity. No live deployment is part of this slice.
    • Touch: run sandbox save → publish → email/push → destination; run peak load with a 15-minute worker outage and broad searches.
    • Test S16_readiness: exact evaluator parity; real publication durability; provider stable keys/lookup/signatures; §3 latency and recovery targets; reports show whether the unchanged 15-minute metric passes. If a prerequisite is unavailable, this slice fails and beta remains blocked.

Phase 4 gate: Approved by explicit user instruction for this run. No reviewer participated. This approves the plan, not installations, commits, ticket changes, deployment, or launch. Implementation begins only under a separate implementation request.

Handoff and change control

Keep §§1–10 as the durable architecture. Replace §§11–12 with the next change's plan after this feature merges. For implementation deviations, update affected architecture and list each departure under “Deviations from the ERD” in the eventual PR description. Product gaps return to the product owner; do not silently rewrite the PRD.

Between batches, a human runs the touch checks and reads the diff. This run's approved gates do not claim that those future checks occurred. Beta requires assigned owners, real adapter checks, passing E2E artifacts, timing feasibility evidence, and explicit launch authorization. Tentative PRD dates are not commitments.

Document verification

Validation script (validate-erd.py) checks this document's required sections, gate status, linked local files, diagram presence, fenced-block balance, and slice structure. Validation report (saved-search-alerts-erd-validation.json) records its result. This is document validation only. It does not prove code, provider delivery, runtime security, or production readiness.
